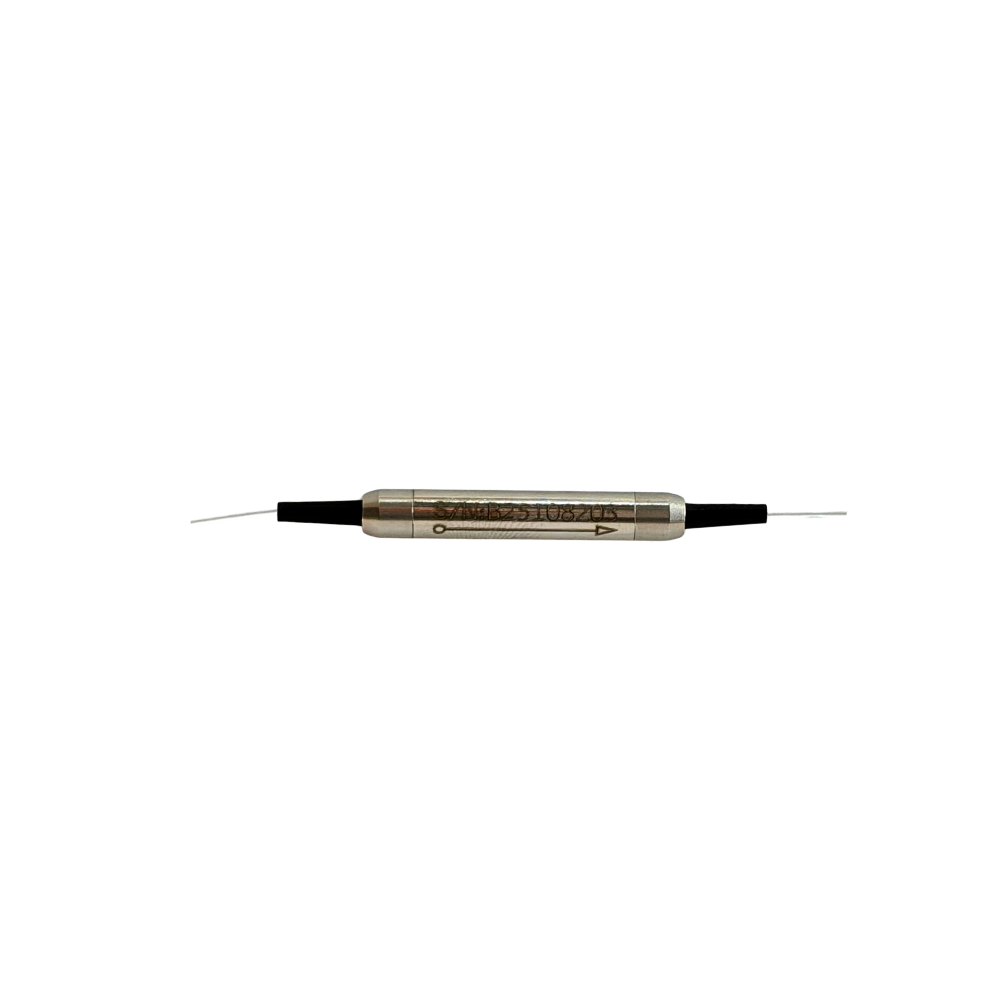

0.5 to 5W single-stage isolator

Parameter

Structure Configuration

Port 1 to Port2 two-port device

Center Wavelength (nm)

1550

Operating wavelength range(nm)

1528~1569

Insertion Loss (1®2)@23℃(dB)

0.6

Minimum Isolation(1®2)@23 ° c (dB)

>28

Polarization Dependent Loss (dB)

<0.15

Polarization mode dispersion(ps)

<0.25

Temperature dependent loss (dB)

<0.15

Return Loss (dB)

> 55/55

Max Power Handling (mW)

5000

Operating Temperature (C)

0 to +70

Storage Temperature (c)

-40 to +85

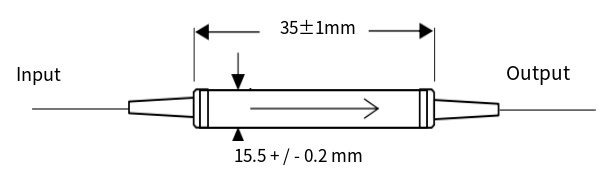

Package Dimensions (mm)

ɸ 5.5 * 35

Fiber type

SMF-28e, 250um bare fiber

Line length

Acuity 1.0 m

Connector

NA
