C Band DWDM EDFA Series

DWDM EDFA

DWDM EDFA, which stands for Dense Wavelength Division Multiplexing Erbium-Doped Fiber Amplifier, is mainly used to amplify optical signals in DWDM systems, compensate for signal transmission losses, and ensure stable signal transmission.

EDFAs utilize 980nm or 1480nm pump lasers to provide energy and incorporate internal control methods such as AGC, ACC, or APC. The modules employ precise temperature control technology, granting them excellent temperature adaptability. They maintain normal operation even under harsh operating temperature conditions (-20°C to 60°C).

Product Inquiry: +86 15610114544

Product Inquiry Contact Us

product details

product advantage

Backbone Network: Used for long-distance and large-capacity signal transmission, compensating for signal loss and ensuring signal quality.

Metropolitan Area Network (MAN): Meets the needs of multi-service and large-bandwidth transmission within the metropolitan area, enabling signal amplification and extension of transmission distance.

Data Center Interconnection (DCI): Can connect different data centers, ensure high-speed and reliable data transmission, and improve communication efficiency between data centers.

Power Private Network: Ensures stable data transmission in power systems and meets the needs of power monitoring, dispatching and other services.

Government and Enterprise Private Network: Builds dedicated communication networks for governments and enterprises, providing high-quality and reliable communication services.

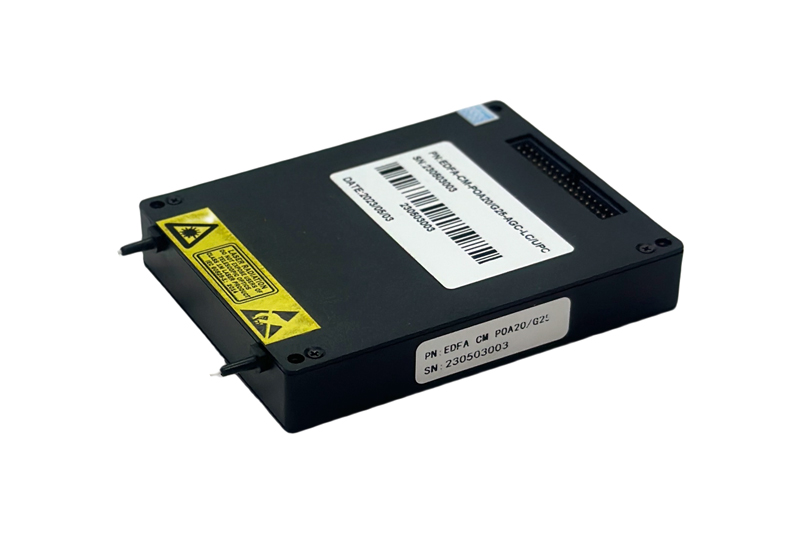

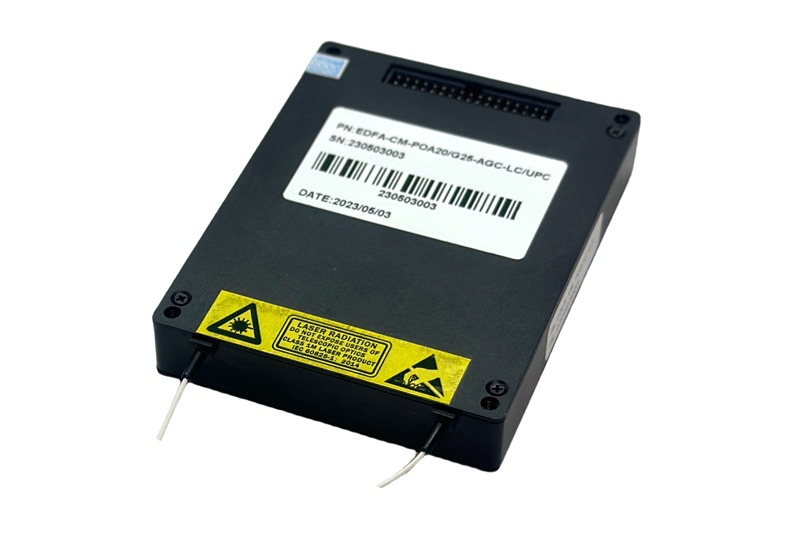

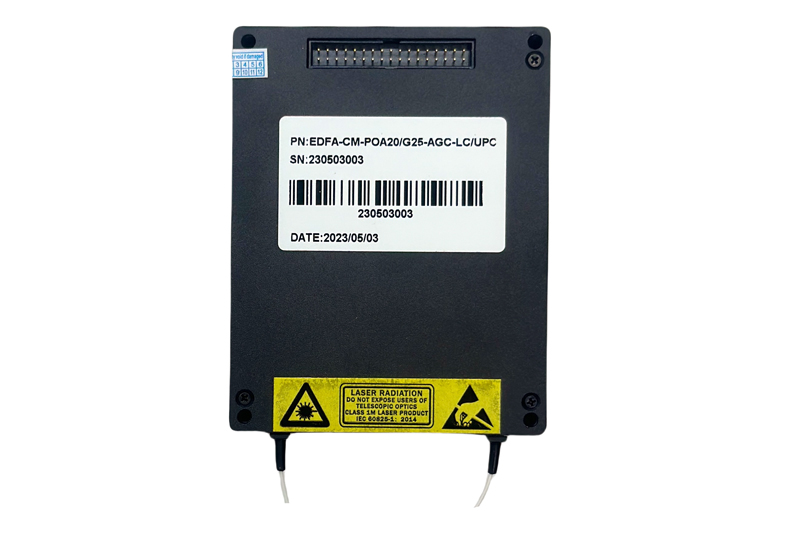

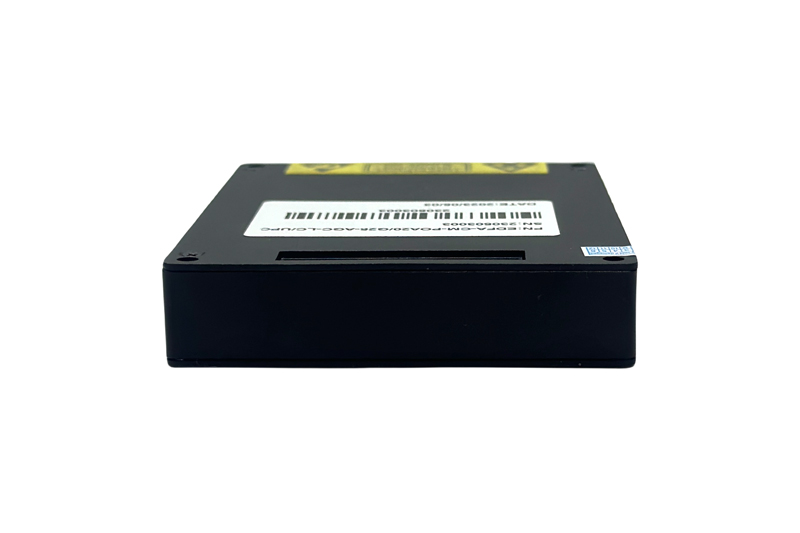

Products

Designed for DWDM transmission systems, it can be integrated into EDFA cards or racks according to customer application requirements.

● Compatible with compact MSA sizes

● Wide operating wavelength range

● High output optical power and low noise

● Low power

● Customizable

Product Applications

● Metro and Access Networks

● DWDM transmission system

product standard

● Telcordia GR-1312-CORE

● ROHS

Product Parameters

Parameters	Minimum Value	Typical Value	Maximum Values	Unit
Wavelength Range	1528	-	1565	nm
Input Optical Power	-33	-	+12	dBm
Output Optical Power	10	-	24	dBm
Gain (electronics)	10	-	33	dB
Noise Factor (NF)		5.5	6	dB
Gain Flatness		1.2	1.5	dB
Return Loss	45	-	-	dB
PDG		-	0.5	dB
Operating Temperature	-5	-	+55	°C
Storage Temperature	-40	-	85	°C
Relative Humidity (non-condensing)	15	-	85	%
Sizes	907015			mm
Power Wastage			10	W
Input Voltage	4.75	5	5.25	V
Communication Level	LVTTL/RS232

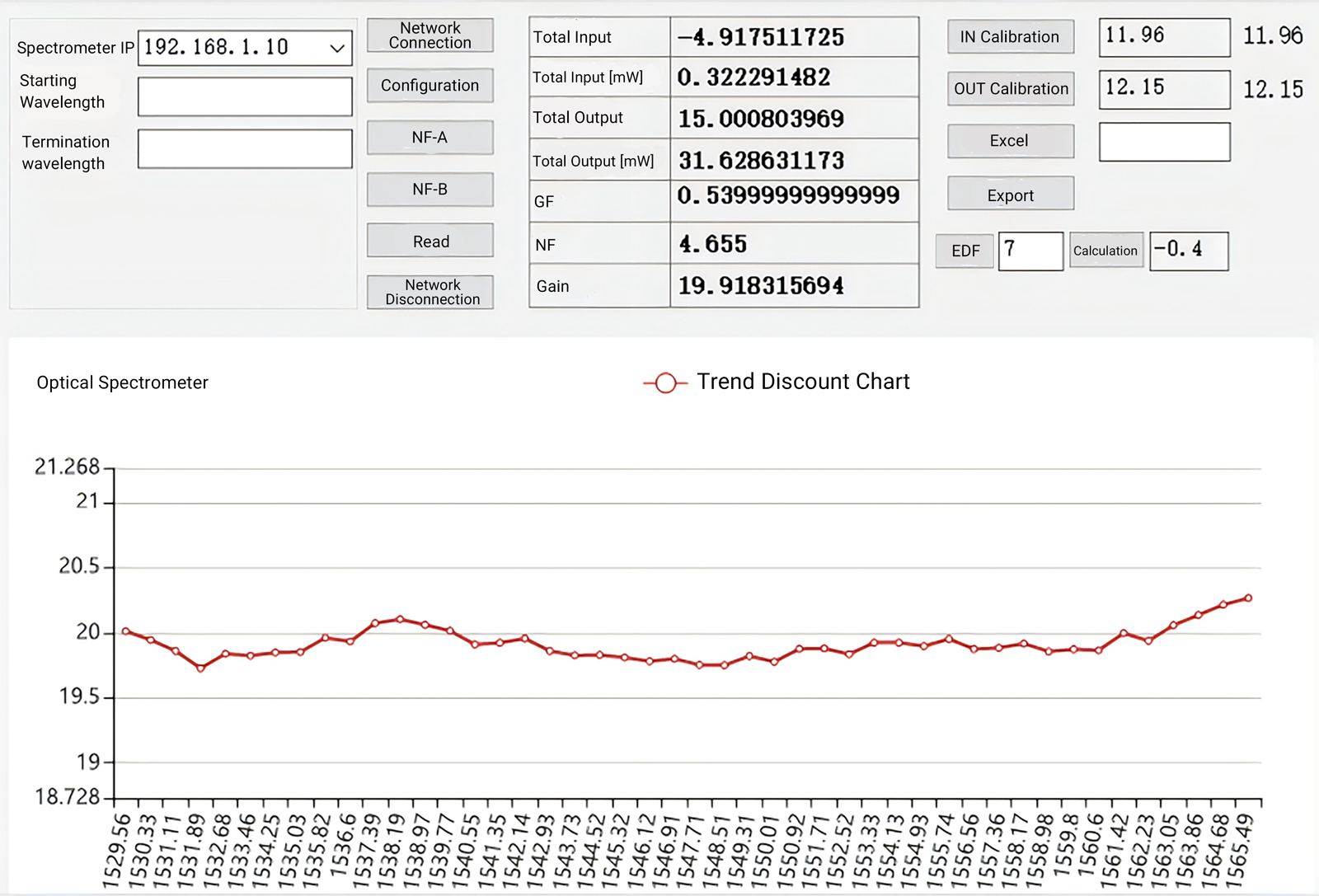

Test Data Curve

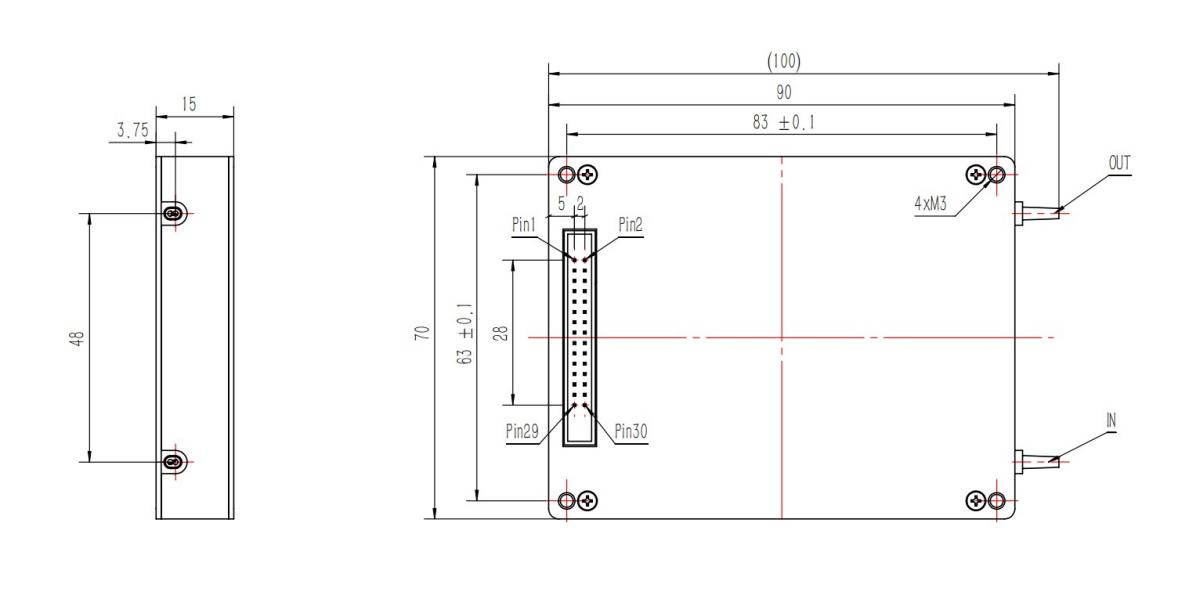

Product Size

Product Ordering Guide

Example:

FGA-052-20G20-(1528~1565)nm-0.9-LC/UPC-0.5-White Loose Tube

FGA: Fixed Gain

052: Product Model-Circuit Non-domestic Chip

20: Saturated output optical power 20dBm

G20: Fixed gain 20dB

1528~1565nm: operating wavelength range

0.9: Input and output fiber type SMF-28e, 900um

LC/UPC: Fiber Optic Connector Type

0.5: input and output fiber length 0.5m

White Loose Tubing: Fiber Optic Pigtail Sleeving Type
