10W Single-Stage Isolator from China Suppliers - High Isolation and Reliability | Factory Direct Products
Hot Products

10W Single-Stage Isolator from China Suppliers - High Isolation and Reliability | Factory Direct Products

,

Product Features
● Minimal insertion loss for efficient performance
● Exceptional isolation to enhance signal quality
● Broad operational bandwidth for versatile applications
● Reliable stability, ensuring long-term operation

,

Product Applications
● Ideal for fiber optic communication systems
● Perfect for Cable TV (CATV) setups
● Suited for passive optical networks

,

As a leading China supplier and factory, we provide top-notch optical components tailored for diverse needs. Our products are designed to meet the highest industry standards, ensuring reliability and performance in various applications.

,
    Contact us
    Product Details

    Product Features

    Low insertion loss value
    High isolation
    Wide working bandwidth
    High stability and reliability

    Product Applications

    Fiber optic communication systems
    Cable TV CATV
    Passive optical networks

    Product Parameters

    Parameter
    Structure Configuration Single-port device
    Center Wavelength (nm) 1550
    Operating wavelength range(nm) 1 5 35 ~ 1 5 6 5
    Insertion Loss (1→2)@23 ° c (dB) ≤0.6
    Minimum Isolation(1→2)@23 ° c (dB) ≥30
    Polarization Dependent Loss (dB) ≤0.1
    Polarization mode dispersion(ps) ≤0.25
    Temperature dependent loss (dB) ≤0.15
    Return Loss (dB) 55/55 or higher
    Maximum Power Max Power Handling (W) 10W
    Operating Temperature (°C) 0 to +50
    Storage Temperature (°C) -40 to +85
    Package Dimensions (mm) Φ 5.5 * 35
    Type of optical fiber Corning-SMF-28(R)-Ultra with 250um bare fiber
    Line length Acuity 1.0 m
    Connector NA

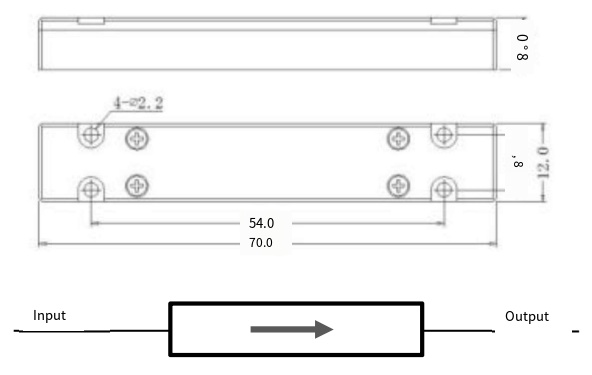

    Product Size

    L70*W12*H8 Unit: mm

    Frequently Asked Questions (FAQ)

    What is the center wavelength and operating range of this device?
    The device features a center wavelength of 1550 nm and operates across a wavelength range of 1535 nm to 1565 nm.
    What are the insertion loss and isolation specifications?
    This high-performance component offers a low insertion loss of ≤0.6 dB and a minimum isolation of ≥30 dB at 23 °C.
    What type of optical fiber is used in this product?
    It uses Corning-SMF-28(R)-Ultra fiber with a 250um bare fiber configuration and a line length of Acuity 1.0 m.
    What is the maximum power handling capacity of the device?
    The device supports a maximum power handling capacity of up to 10W.
    What are the package and overall product dimensions?
    The internal package dimensions are Φ 5.5 * 35 mm, while the overall product size is L70 * W12 * H8 mm.
