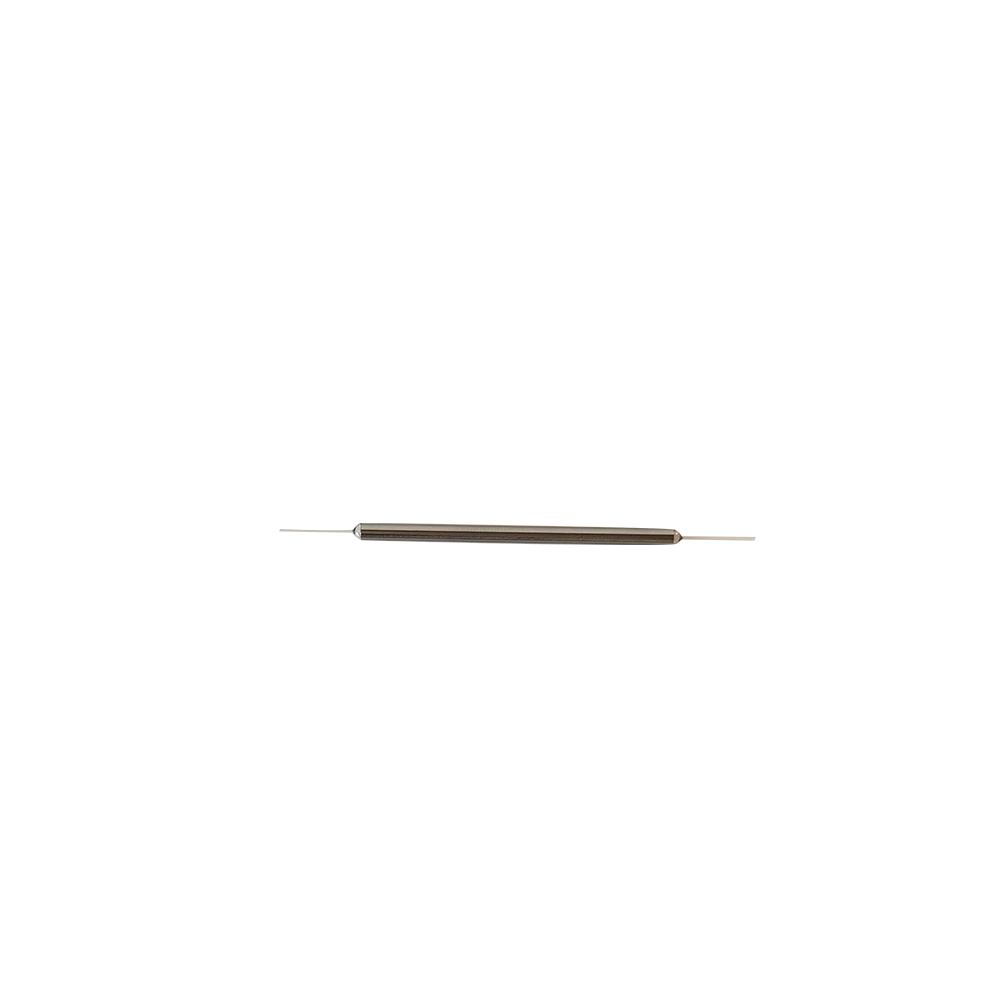

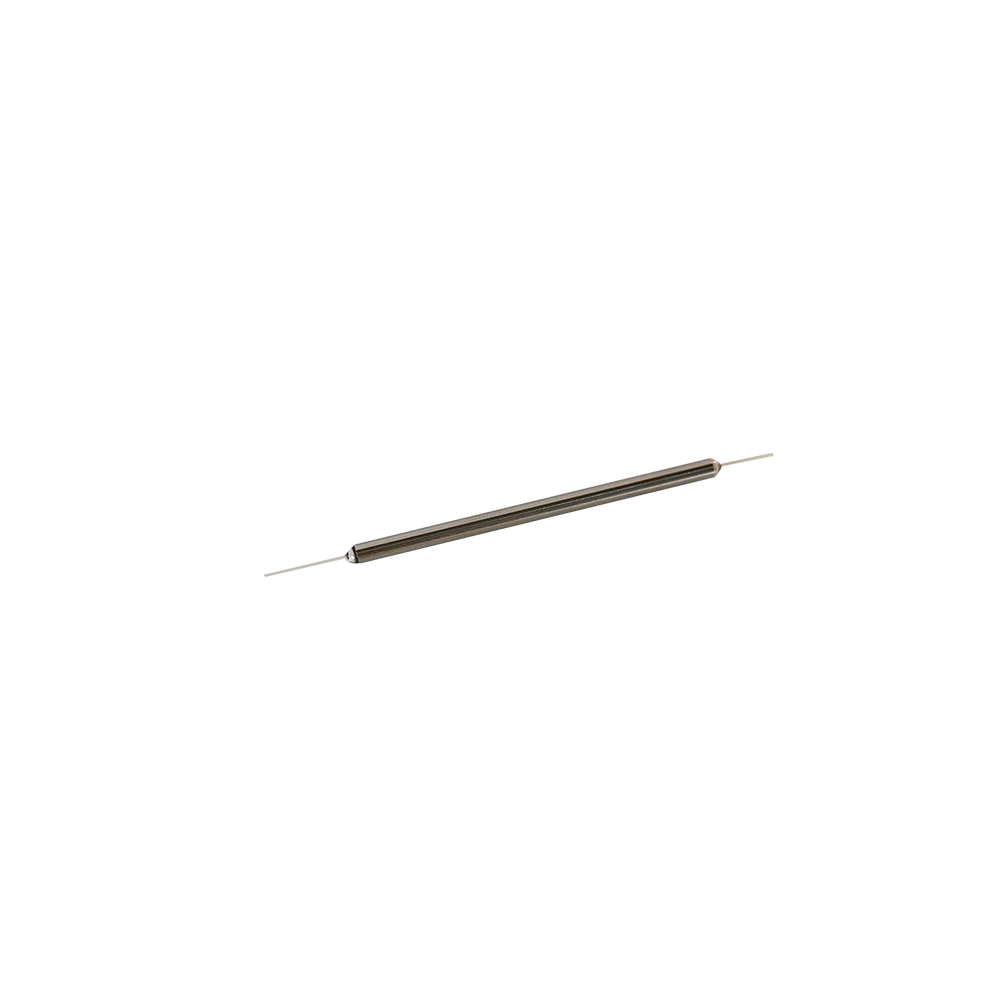

13010130 WDM-980-1550nm
Product Features
●Low insertion loss value
●High isolation
●Wide working bandwidth
●High stability and reliability
Product applications
●Fiber optic communication systems
●Cable TV CATV
●Passive optical networks
Product Parameters
|
Parameter |
Value |
|
Center wavelength (nm) |
980/1550 |
|
Operating bandwidth (nm) |
980±10 / 1550±30 |
|
Configuration |
1x2 |
|
IL@1550nm(dB) |
≤0.8 |
|
IL@980nm(dB) |
≤0.7 |
|
PDL(dB) |
≤0.10 |
|
Isolation@1550nm(dB) |
≥25 |
|
Isolation@980nm(dB) |
≥12 |
|
PER（dB） |
≥20 |
|
Directivity(dB) |
≥50 |
|
Fiber type |
Common&pass:PM1550,Reflection:Hi1060 |
|
Package size (Ф×L) mm |
Ф5.5x35 |
|
Fiber lead length |
1m |
|
Operating Temperature |
-5~70℃ |
|
Storage Temperature |
-40~85℃ |
|
Power handling |
≤500mW |
|
Port mark |
See structure below |

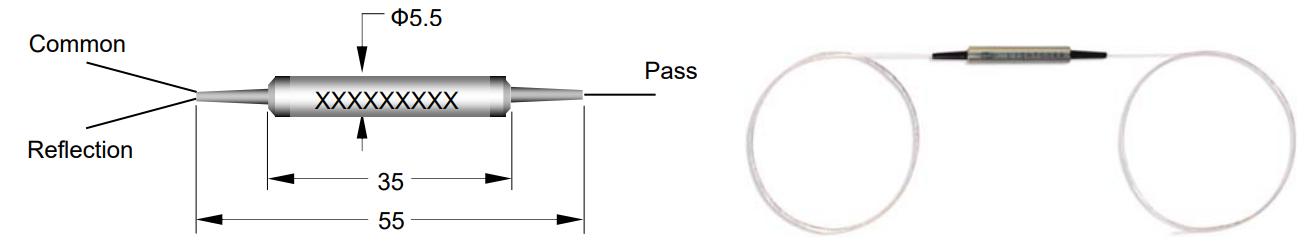

Product size:
Ф5.5x35 Unit: mm
