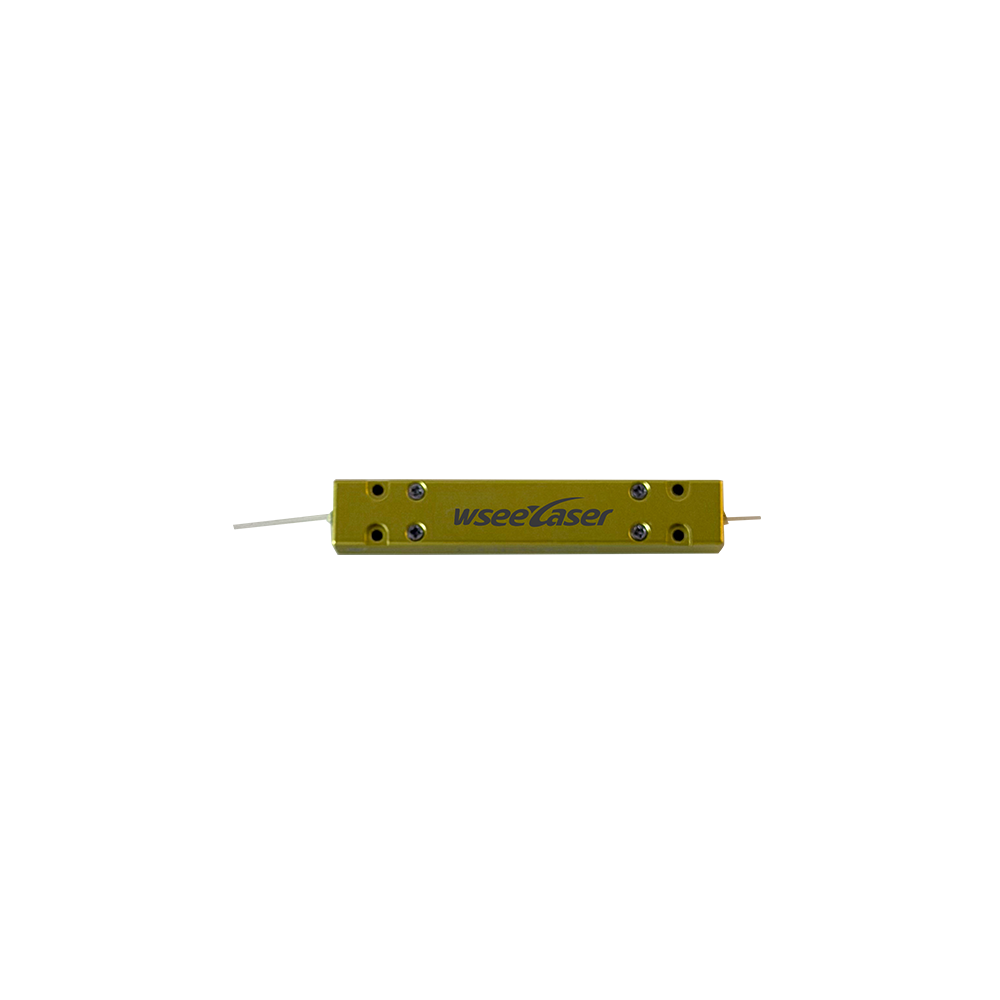

(6+1)×1 Multi-Mode Pump Combiner

Name: (6+1)×1 Multi-Mode Pump Combiner
Rating: 5 (243 reviews)

Product Inquiry: +86 15610114544

Product Inquiry Contact Us

product details

Product Features

● High Signal Transfer Efficiency

● High Pump Efficiency

● Wavelength Insensitive

● Custom Configurations Available

● Fiber optic communication systems

● Cable TV CATV

● Passive optical networks

Parameters/Test conditions			Min	Typ.	Max	Unit	Note
1	Signal Operating Wavelength		1550			nm
2	Pump Operating Wavelength		915			nm
3	Pump Fiber	Core Diameter	105			µm	MM 105/125 0.22NA Fiber Code “110”
		Cladding Diameter	125			µm
		Numerical Aperture	0.22			-
4	Signal Fiber	Core Diameter	9			µm	28e 100K Fiber Code “000”
		Cladding Diameter	125			µm
		Numerical Aperture	0.14			-
5	Output fiber	Core Diameter	11			µm	Fibercore - DC1500 0.12 (11/125) Fiber Code “476”
		Cladding Diameter	125			µm
		Numerical Aperture	0.12/0.45			-
6	Transmission efficiency		90			%	JDSU 915nm Pump tested
7	Signal Insertion Loss				0.7	dB
8	M2			1.1	1.2	-
9	Optical Isolation		20			dB
10	Fiber Length			1.0		M	Each port
11	Power Handling				10	W	Each port
12	Operating Environment Temperature		-5		+70	^oC
13	Operating Humidity		5		95	%RH	Not recommend in high humidity for long time.
14	Storage Temperature		-40		+85	^oC
15	Package		C4			-	Handling power is different with PKG

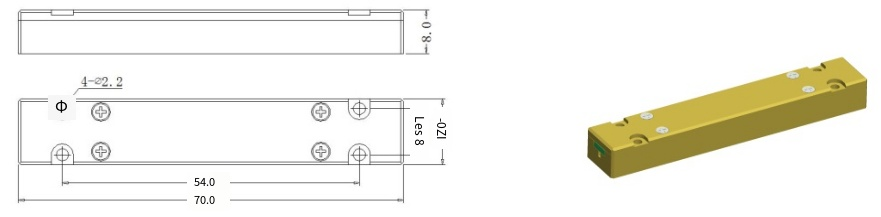

L70*W12*H8 Unit: mm
