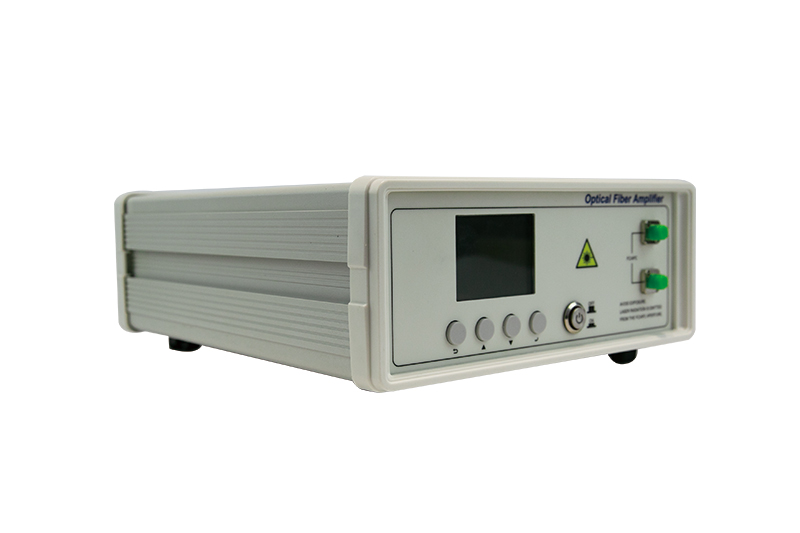

Benchtop High Power 1540~1565nm 37dBm 5W EDFA Fiber Optical Amplifier
Application

Benchtop High Power 1540~1565nm 37dBm 5W EDFA Fiber Optical Amplifier

Product

● Provide OEM customized services according to customer requirements.
● Low noise figure, low power consumption, power consumption < 20W.
● Wide operating wavelength range:1528nm~1565nm.
● Standard RJ-45 Network management interface.
● Dual power supply design, one button pull, can be replaced online.
● Gain flatness≤±1dB.
● Independent LCD display, convenient monitoring equipment working status.
● Standard 1U rack mounted, easy to install and maintain.

    Product Inquiry: +86 15610114544
    Product Inquiry Contact Us
    product details

    Product description

    Benchtop High-Power EDFA products feature high output power, excellent gain performance, and low noise figure, suitable for R&D in telecommunications, fiber sensing, CATV, etc.:
    • High Power Output: Saturated output power up to 5W (37dBm) per fiber, meeting high optical power application requirements.
    • Excellent Gain Performance: High gain characteristics, e.g., small-signal gain >30dB at 1550nm for -3dBm input (some models reach 37dB). Effectively amplifies optical signals, compensating for transmission losses.
    • Low Noise Figure: Good noise performance, typical noise figure of 5.5dB (max usually 6.0dB) for 0dBm input signal. Reduces noise introduced during amplification, ensuring signal quality.
    • Broad Wavelength Range: Operating wavelength typically covers the C-band (1535nm-1565nm), meeting various C-band optical communication application needs.
    • Multiple Control Modes: Operates in ACC/APC/AGC modes. Users can select the appropriate mode based on needs for flexible control of the amplifier's operating state.

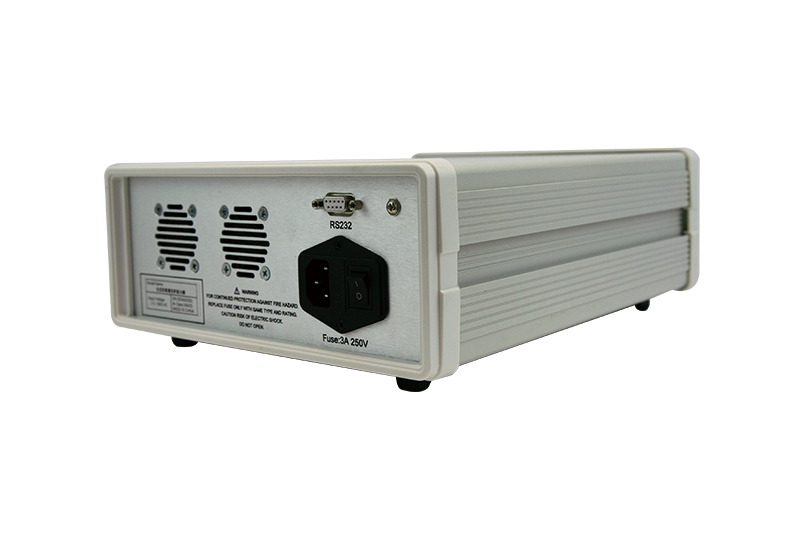

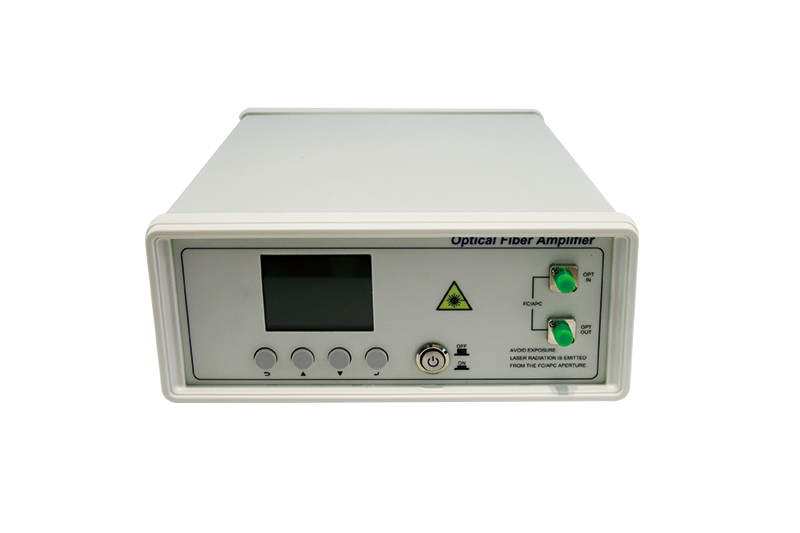

    • Convenient Operation & Monitoring: The front panel typically includes an LCD monitor display, key switches, power adjustment knobs, etc., for intuitive status viewing and operation. Equipped with computer interfaces like RS232 for remote control and monitoring.
    • Compact Design: As a benchtop unit, relatively small size and footprint, easy placement in labs and similar environments.
    • High Stability & Reliability: Uses high-quality components and robust manufacturing. Features good thermal management design and long lifespan (often reliably operational for over 10 years), providing stable support for long-term research and applications.

    Product Applications

    ● Telecom
    ● Data Center
    ● 5G Network
    ● Long Distance Network
    ● DWDM System

    Technical parameters

    Description

    Min

    Typ

    Max

    Unit

    Note
    Wavelength Coverage

    1528

    -

    1565

    nm

    customize
    Input Power

    -33

    -

    +12

    dBm
    Output Power

    10

    		 　 -

    24

    dBm
    Gain

    9

    33

    dB
    Noise Figure

    -

    5

    6

    dB

    Gain Flatness

    -

    1.5

    -

    dB

    Output Power Stability

    -

    0.1

    -

    dB

    PDG

    -

    -

    0.5

    dB

    PMD

    -

    -

    0.5

    ps

    Return Loss

    45

    -

    　-

    dB

    Working Temperature

    -5

    -

    55

    dB

    Storage Temperature

    -40

    -

    85

    dB

    Power Consumption

    -

    -

    20

    W

    Mounting

    Desktop

    -


    Size

    323*255*100

    mm


    Connector Type

    FC/APC

    -

    customize
    Supply voltage

    AC100~265 or DC 35~65

    V

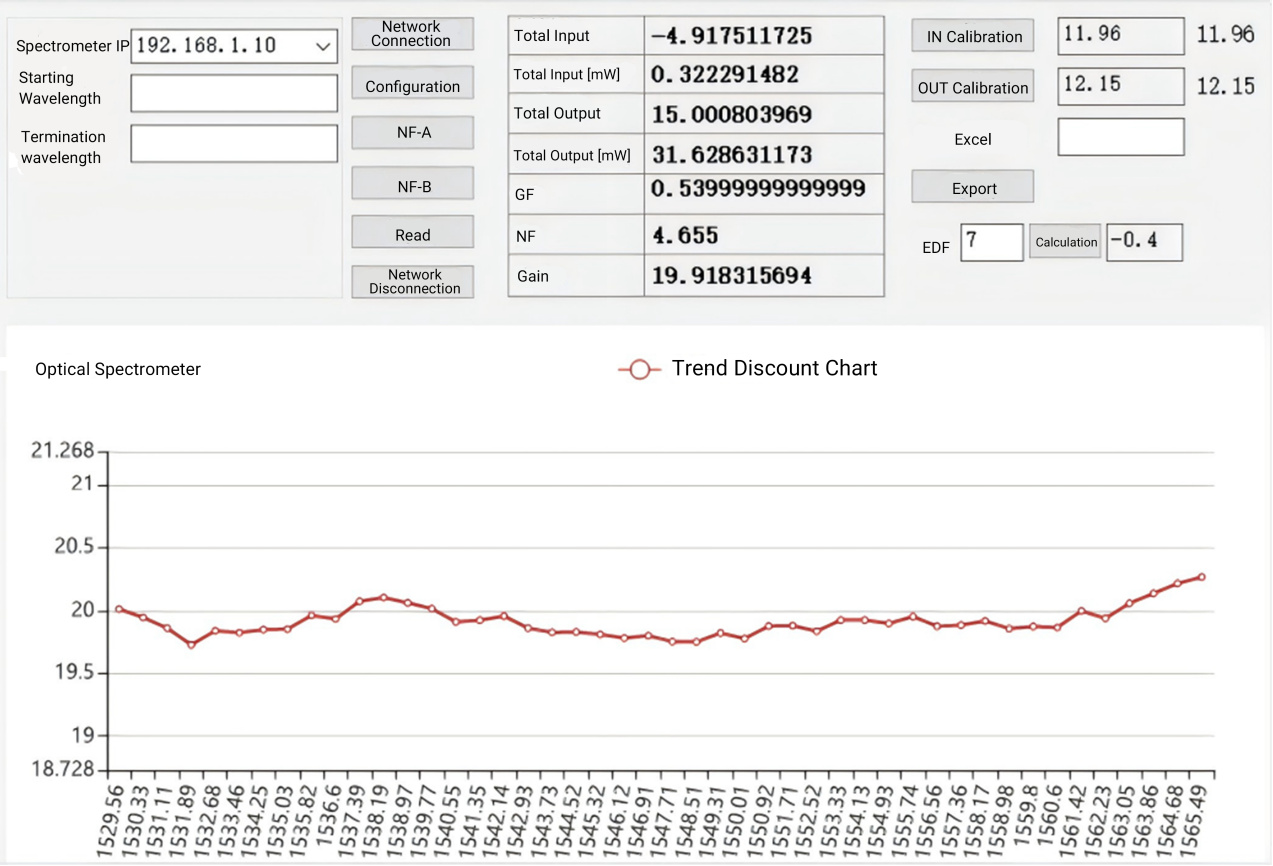

    Test Data Curve

    product description01
