What is a Fiber Bragg Grating Sensor?

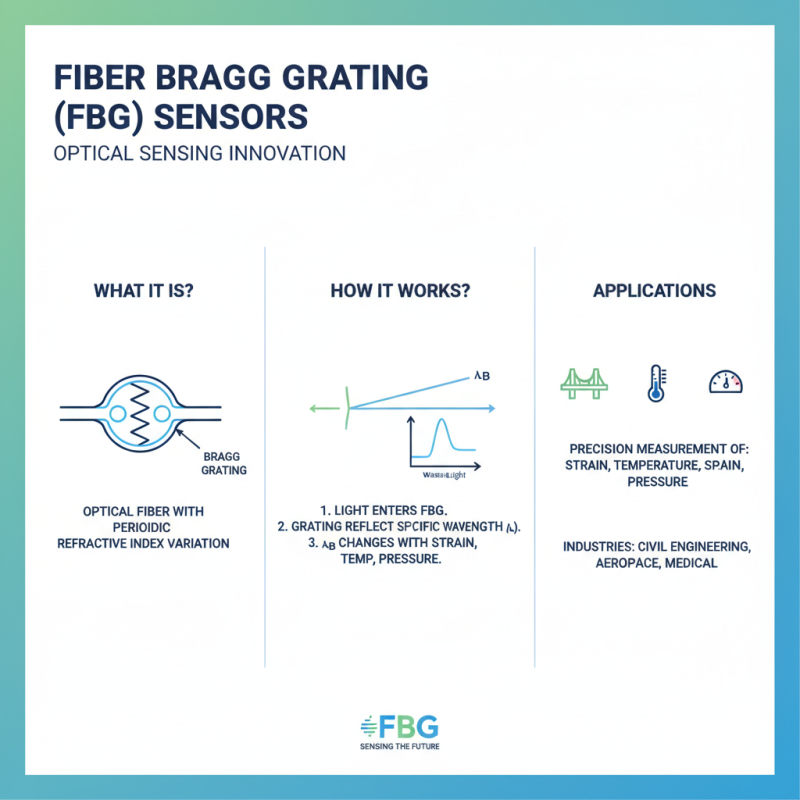

A Fiber Bragg Grating (FBG) sensor is an advanced optical device that utilizes the properties of light propagation within optical fibers to measure various physical parameters such as temperature, strain, and pressure. At its core, an FBG consists of a periodic variation in the refractive index of the fiber, created by exposing it to a specific pattern of ultraviolet light. This distinct grating structure reflects specific wavelengths of light while allowing others to pass through, functioning as a wavelength-selective filter.
When external conditions change—like an increase in temperature or application of mechanical stress—the grating's characteristics shift, leading to alterations in the reflected wavelength. This precise relationship makes FBG sensors highly sensitive and suitable for real-time monitoring. The reflected wavelength can be analyzed using optical tools, providing valuable data for a wide range of applications, including structural health monitoring in buildings, bridges, and pipelines, as well as in medical and aerospace industries. By leveraging their lightweight and compact nature, FBG sensors can be embedded into various materials and environments, enabling continuous data collection and enhancing safety and operational efficiency.
What is a Fiber Bragg Grating Sensor and How Does It Work?
| Dimension | Description |
| Operating Principle | Utilizes the phenomenon of diffraction to sense strain and temperature changes. |
| Core Material | Typically made from silica or polymer. |
| Wavelength Range | Operational range from 800 nm to 1600 nm. |
| Applications | Used in structural health monitoring, temperature measurement, and pressure sensing. |
| Sensitivity | High sensitivity to strain (up to 10^-6 m/m) and temperature fluctuations (0.1°C). |
| Advantages | Passive operation, immunity to electromagnetic interference, and lightweight. |
| Installation | Can be embedded in structures or mounted on surfaces for real-time monitoring. |
| Limitations | Sensitivity to environmental conditions and requires careful calibration. |
Principle of Operation of Fiber Bragg Grating Sensors
Fiber Bragg Grating (FBG) sensors are advanced optical devices that capitalize on the properties of light within optical fibers to measure physical parameters such as strain, temperature, and pressure. The principle of operation of FBG sensors hinges on the periodic variation of the refractive index along a segment of the optical fiber, which reflects specific wavelengths of light while allowing others to pass through. This selective reflection occurs due to Bragg's law, where the reflected wavelength is determined by the spacing of the grating and the effective refractive index of the fiber material.
When an external stimulus, such as deformation or thermal change, affects the fiber, it alters the grating's spacing or the refractive index, resulting in a shift of the reflected wavelength. Research shows that a change of just a few nanometers in the reflected wavelength can correspond to significant changes in temperature and strain, making FBG sensors highly sensitive and accurate.
According to a report from MarketsandMarkets, the global fiber Bragg grating market is projected to reach USD 3.0 billion by 2025, driven by increasing demand across sectors like civil engineering and aerospace for structural health monitoring. This growth underscores the importance of FBG technology in enhancing safety and optimizing the performance of critical infrastructure.
Components of a Fiber Bragg Grating Sensor
Fiber Bragg Grating (FBG) sensors are a pivotal innovation in the field of optical sensing, known for their ability to measure various physical parameters like strain, temperature, and pressure with high precision. At the heart of an FBG sensor lies its core component: the fiber Bragg grating itself, a periodic variation in the refractive index of the fiber which acts as a wavelength-selective reflector. This grating is inscribed within the optical fiber, typically using ultraviolet light, creating a unique wavelength of light that resonates with the grating structure.
In addition to the grating, an FBG sensor system incorporates several essential components: a light source, typically a broadband source, which sends light into the optical fiber; a photodetector for measuring the reflected wavelength; and a signal processing unit for analysis of the data collected. Reports indicate that the global FBG sensor market is projected to grow at a compound annual growth rate (CAGR) of approximately 9.2% from 2022 to 2027, driven by increased demand in industries such as aerospace, civil engineering, and oil and gas. The integration of smart materials with FBG sensors further enhances their capabilities, allowing for real-time monitoring and structural health assessment, solidifying their role as a fundamental technology in modern sensor applications.
Fabrication Techniques for Fiber Bragg Gratings

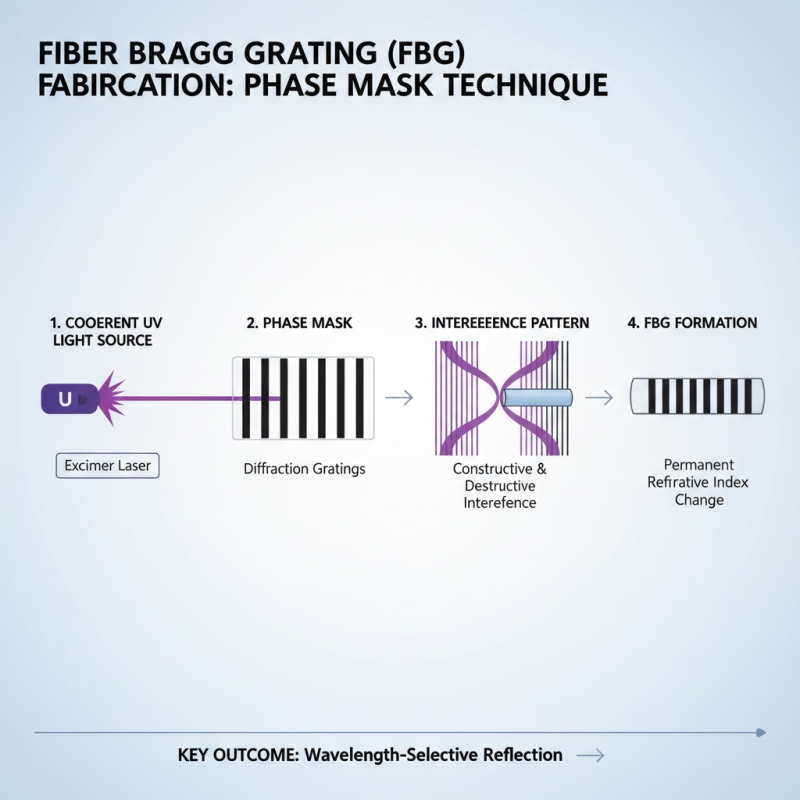

The fabrication techniques for Fiber Bragg Gratings (FBGs) are pivotal in determining their performance and applicability in various sensing environments. One commonly used method is the phase mask technique, where a coherent light source is passed through a mask that contains a pattern of alternating transparent and opaque regions. This generates an interference pattern when the light interacts with the optical fiber, inducing a periodic refractive index change along its length. The precision of the phase mask and the properties of the optical fiber are crucial, as they influence the wavelength range and the sensitivity of the resulting FBG.
Another significant approach is the point-by-point writing technique, which involves the utilization of a focused laser beam to create gratings directly onto the fiber. This method offers enhanced versatility, allowing for the inscription of multiple gratings with varying spacing and depths within the same fiber. Additionally, it can be adapted to various fiber types, enabling the creation of specialized sensors tailored for specific applications. The ability to control the writing parameters also permits customization of the grating characteristics for improved performance in distinct environmental conditions. Both techniques highlight the innovative capabilities within the field of Fiber Optic Sensing and the continuous advancements in fabrication processes.
Applications of Fiber Bragg Grating Sensors in Industry
Fiber Bragg Grating (FBG) sensors have gained significant traction across various industrial applications due to their unique ability to provide precise measurements of strain, temperature, and pressure. One notable application is in structural health monitoring, where these sensors are integrated into bridges, buildings, and dams to continuously assess the integrity of critical infrastructure. By embedding FBG sensors in materials, engineers can detect stress changes and potential failures in real-time, which helps in maintaining safety and reducing repair costs.
In the aerospace sector, FBG sensors are utilized for monitoring the structural loads on aircraft components and ensuring operational safety. Their lightweight and small size make them ideal for integration into various surfaces without adding significant weight. Additionally, FBG sensors play a crucial role in the oil and gas industry for monitoring pipeline integrity and detecting leaks. The capability to operate in harsh environments and provide accurate data enhances their usefulness, making them an essential tool for proactive maintenance and safety management in these industries.
Advantages and Limitations of Fiber Bragg Grating Sensors
Fiber Bragg Grating (FBG) sensors are widely utilized in various applications due to their unique capabilities in measuring changes in temperature, strain, and pressure. One of the primary advantages of FBG sensors is their high sensitivity and accuracy. They can detect minute changes in the environment, making them ideal for structural health monitoring and aerospace applications. Additionally, FBG sensors are immune to electromagnetic interference, which allows them to operate effectively in harsh environments where traditional sensors might fail.
However, despite their benefits, Fiber Bragg Grating Sensors also come with certain limitations. The installation process can be complex and requires specialized equipment. Furthermore, while FBG sensors excel in static measurements, their performance in extremely dynamic scenarios may be limited. The cost of deployment can also be a factor, as the technology may demand a higher initial investment compared to conventional sensing solutions.
Tip: When considering the use of FBG sensors, always conduct a thorough assessment of the specific environmental conditions and measurement needs. This can help in deciding whether the advantages outweigh the limitations for your particular use case. Additionally, ensure that you are working with trained professionals for installation and calibration to maximize the effectiveness of the sensors.
Future Trends in Fiber Bragg Grating Sensor Technology
The evolution of Fiber Bragg Grating (FBG) sensor technology is poised to revolutionize various industries, particularly in structural health monitoring, aerospace, and telecommunications. According to a recent market report by ResearchAndMarkets, the global FBG sensor market is projected to grow at a compound annual growth rate (CAGR) of over 10% from 2023 to 2028, driven by increasing demand for accurate and reliable sensing solutions. The integration of advanced signal processing techniques and artificial intelligence into FBG systems is expected to enhance their performance and applicability.
Emerging applications of FBG sensors are being explored in areas such as smart materials and IoT systems. These sensors can provide real-time data on environmental conditions, structural integrity, and system performance, making them invaluable in safety-critical applications. For instance, advancements in wavelength interrogation technology now allow for more extensive, multiplexed sensing, enabling the monitoring of multiple parameters simultaneously with higher precision. Furthermore, the miniaturization of FBG sensors is paving the way for their integration into everyday objects and wearable technology, creating new opportunities within health monitoring and personal safety devices. As industries seek to leverage these innovations, the synergy between FBG technology and digital transformation will likely accelerate, leading to smarter infrastructures and enhanced operational efficiencies.
FAQS
: A Fiber Bragg Grating Sensor is an optical device that measures physical parameters like temperature, strain, and pressure by utilizing light propagation within optical fibers. It features a periodic variation in refractive index that reflects specific wavelengths of light.
When external conditions such as temperature or mechanical stress change, the characteristics of the FBG shift, causing alterations in the reflected wavelength. This relationship allows for highly sensitive real-time monitoring.
Common fabrication techniques include the phase mask technique, which uses a coherent light source and a mask to create a refractive index pattern, and the point-by-point writing technique, which employs a laser to inscribe gratings directly onto the fiber.
The phase mask technique involves passing a coherent light source through a mask with transparent and opaque regions, creating an interference pattern that induces periodic changes in the refractive index along the optical fiber.
FBG sensors are used in structural health monitoring for bridges and buildings, aerospace for monitoring aircraft loads, and in the oil and gas industry to monitor pipeline integrity and detect leaks.
FBG sensors can be embedded into materials to assess the integrity of structures in real-time, allowing for early detection of stress changes and potential failures, ultimately enhancing safety and reducing repair costs.
Their lightweight and compact design allow FBG sensors to be integrated into aircraft components without adding significant weight, making them ideal for monitoring structural loads and ensuring operational safety.
FBG sensors are capable of providing accurate data while operating in challenging environments, which is critical for maintenance and safety management in sectors like oil and gas.
Yes, techniques like point-by-point writing allow for the customization of grating characteristics within the sensors, enabling adaptation to different fiber types and environmental conditions for enhanced performance.
Conclusion
A Fiber Bragg Grating Sensor is a sophisticated device used for measuring physical parameters such as temperature and strain by utilizing the unique properties of light within optical fibers. The principle of operation involves the reflection of specific wavelengths of light from periodic variations in the refractive index of a fiber, which change in response to environmental factors. Key components of these sensors include the optical fiber, grating structure, and detection systems, all of which play critical roles in the sensor's functionality.
Fabrication techniques for Fiber Bragg Gratings are essential for creating precise and reliable sensors, while their applications span multiple industries, including aerospace, civil engineering, and healthcare. The advantages of Fiber Bragg Grating Sensors lie in their high sensitivity and immunity to electromagnetic interference, although some limitations exist, such as their susceptibility to temperature changes. Looking ahead, future trends in Fiber Bragg Grating Sensor technology promise advancements in miniaturization and integration with smart systems, enhancing their usability in various fields.
