C Band ASE Light Source

C Band ASE Source MSA 1528~1565nm 50mW ,Flatness <2dB High Reliability

C-band ASE (Amplified Spontaneous Emission) light sources offer excellent spectral characteristics, high output power, strong stability, etc., widely used in fiber sensing, spectral analysis, etc.

Product Inquiry: +86 15610114544

Product Inquiry Contact Us

product details

Key features

• Excellent Spectral Characteristics: Broad Spectrum: Wavelength range typically 1528nm-1563nm, covering the C-band, suitable for applications requiring broad spectrum (e.g., signal detection at different wavelengths in spectral analysis). High Spectral Flatness: Uses special optical processes and flattening techniques, achieving flatness around 1.5dB. Ensures relatively uniform power distribution across the C-band, guaranteeing consistency and accuracy for measurements/applications at different wavelengths.

• High Output Power: Offers high output power with options like 13dBm, 15dBm, 17dBm. Provides sufficient energy for optical signal transmission, meeting needs of long-haul fiber transmission and complex networks.

• Strong Stability: Incorporates global optical feedback control and PWM-based precise temperature control technologies, ensuring stability of output power and spectral shape. Reduces impact of temperature changes on performance for stable operation in various environments.

• Low Polarization Degree: Emits naturally unpolarized light with very low Degree of Polarization (DOP), typically ≤5%. Suitable for polarization-insensitive applications (e.g., certain fiber sensing measurements), reducing interference from polarization-related factors.

• Ease of Use: Provides communication interfaces (e.g., RS-232, LVTTL) and PC software for monitoring source status, enabling remote control and data acquisition, improving work efficiency.

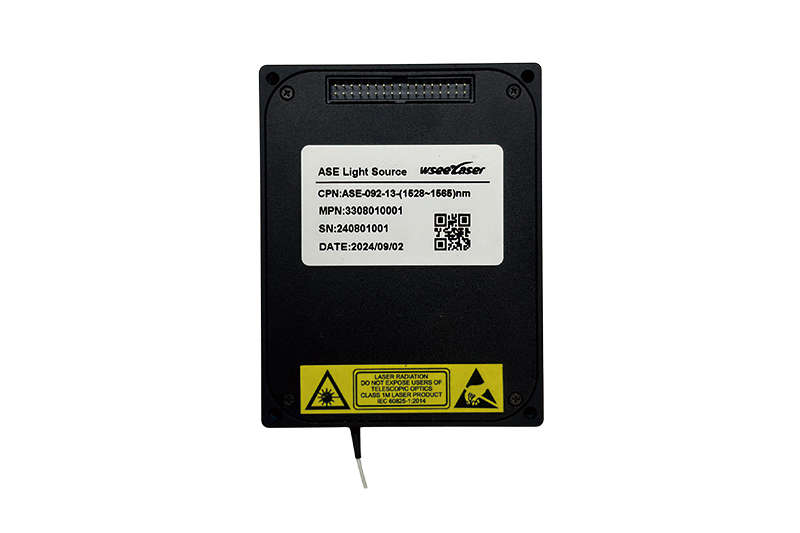

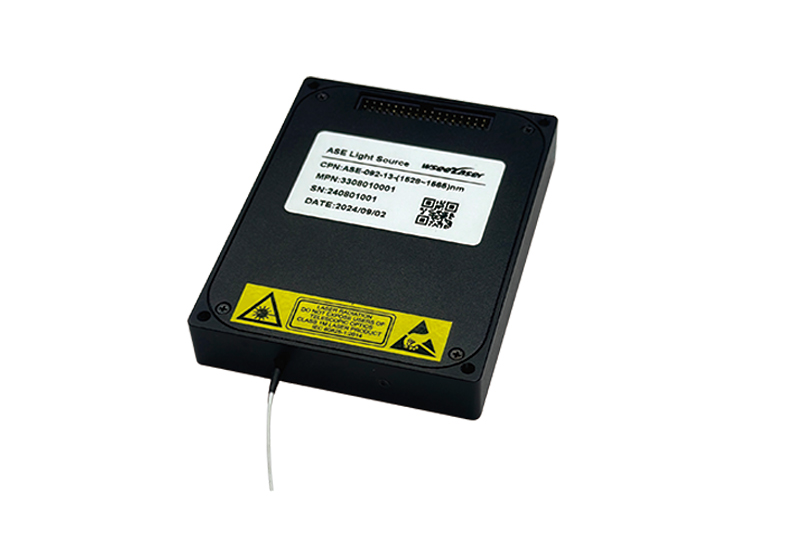

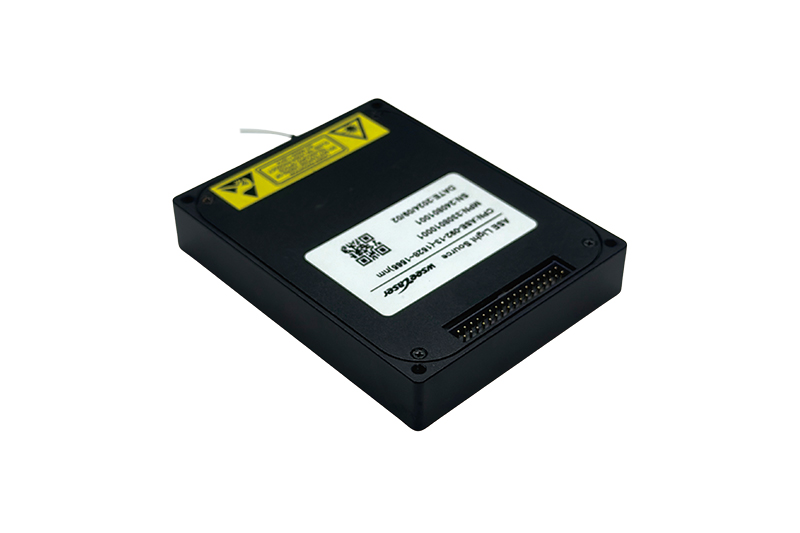

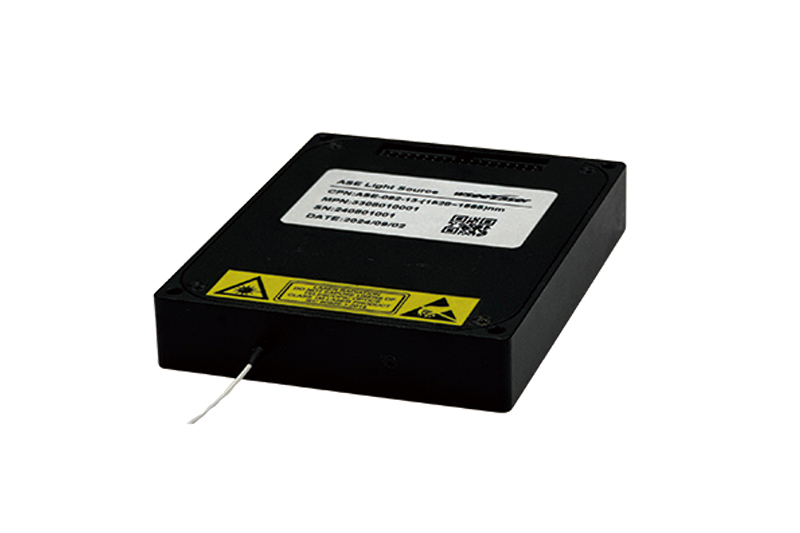

• Compact Structure: WSEE laser products adopt a classic compact MSA (90*70*15mm) modular design, small size, easy integration into other systems, saving space. Suitable for applications with strict volume requirements.

Working environment indicators

Parameters	Min	Typ	Max	Unit	Remarks
Operating Temperature	-5		55	℃
Storage Temperature	-40		85	℃
Working Relative Humidity	5		85	%	40° non-condensable
Store relative Humidity	5		90	%

Optical indicators

Parameters	Min		Typ		Max	Unit	Remarks
Parameters	1528				1565	nm
Operating Wavelength	(WLH)907015					mm
Size	SMF-28e,900um, white pine sleeve					nm
Output Fiber	FC/APC						custom made
Output fiber Connector	0.49	0.5		0.51		m	0.5+/-0.01m, including head, custom
Output Fiber Length	APC/ACC
Work Pattern	-60					dBm
No Optical Reported	-		-		13	dBm
Output Power	-		-		2	dB	@Test at typical values
Gain Flatness	-		-		±0.01	dB	Fifteen minutes
Short-term Output Power Stability	-		-		±0.03	dB	Eight hours
Long-term Output Power Stability	-		-		5	%
Full Temperature Power Stability	45		-		-	dB
Return Loss	-		35		-	dB
Insulation	0		-		13	dBm	Set the precision to 0.1dB

Electrical indicators

3.1 Power supply parameters

Parameters	Min	Typ	Max	Unit	Remarks
Service Voltage	4.75	5.0	5.25	V
Supply Current	-	-	0.6	A
Power Dissipation	-	-	3	W

3.2 Pin definition:

3.2.1 Communication interface type: 30/34Pin optional 2.00mm spacing, male socket

3.2.1.1 30pin pin definition, 2.00mm spacing, male socket

Pin	Name	Attribute	Level Type
1	+5V	P
2	+5V	P
3	+5V	P
4	+5V	P
5	the earth	P
6	the earth	P
7	NC	F
8	NC	F
9	the earth	P
10	the earth	P
11	NC	F
12	NC	F
13	NC	F
14	NC	F
15	NC	F
16	NC	F
17	NC	F
18	NC	F
19	NC	F
20	NC	F
21	GND	P
22	GND	P
23	Serial input	I	LVTTL
24	Serial output	O	LVTTL
25	GND	P
26	GND	P
27	+5V	P
28	+5V	P
29	+5V	P
30	+5V	P

3.2.1.3 34pin pin definition, 2.00mm spacing, male socket

Pin	Name	Attribute	Level Type
1	NC	F
2	NC	F
3	+5V	P
4	+5V	P
5	+5V	P
6	+5V	P
7	the earth	P
8	the earth	P
9	NC	F
10	NC	F
11	the earth	P
12	the earth	P
13	NC	F
14	NC	F
15	NC	F
16	NC	F
17	NC	F
18	NC	F
19	NC	F
20	NC	F
21	NC	F
22	NC	F
23	GND	P
24	GND	P
25	Serial input	I	LVTTL
26	Serial output	O	LVTTL
27	GND	P
28	GND	P
29	+5V	P
30	+5V	P
31	+5V	P
32	+5V	P
33	NC	F
34	NC	F

Note 1: P: power; I: input; O: output; F: suspended.

Serial communication protocol: (Special protocol can be customized and developed)

Communication interface type: 2.00mm spacing, male socket

Parameter	Price	Unit
Baud rate	9600	Bit/s
data bit	8	Bit
stop bit	1	Bit
check bit	not have

4.2 Communication protocol: customizable

Communication protocol format: Downlink command start flag bit first byte 55, second byte AA, uplink command return start flag, first byte AA second byte 55.

Structure appearance

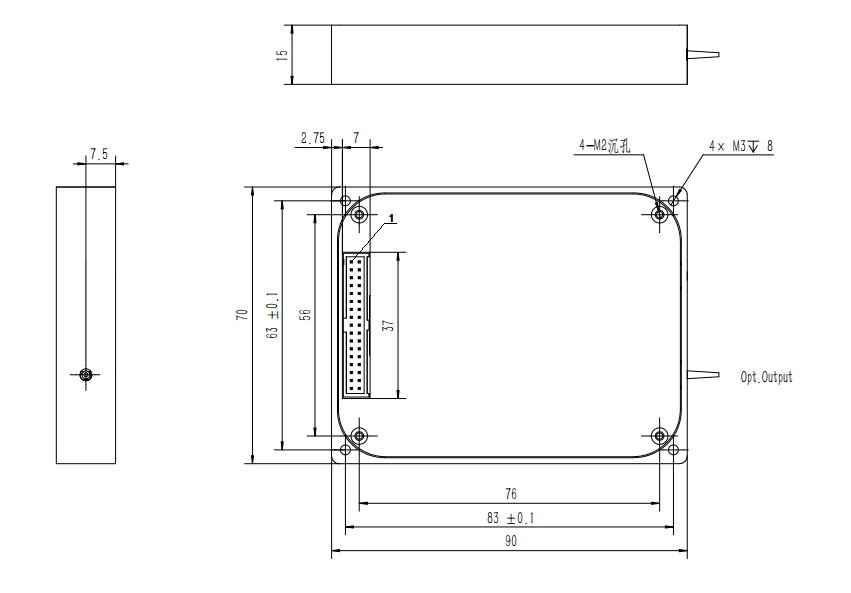

5.2 Mechanical size: 90*70*15mm
