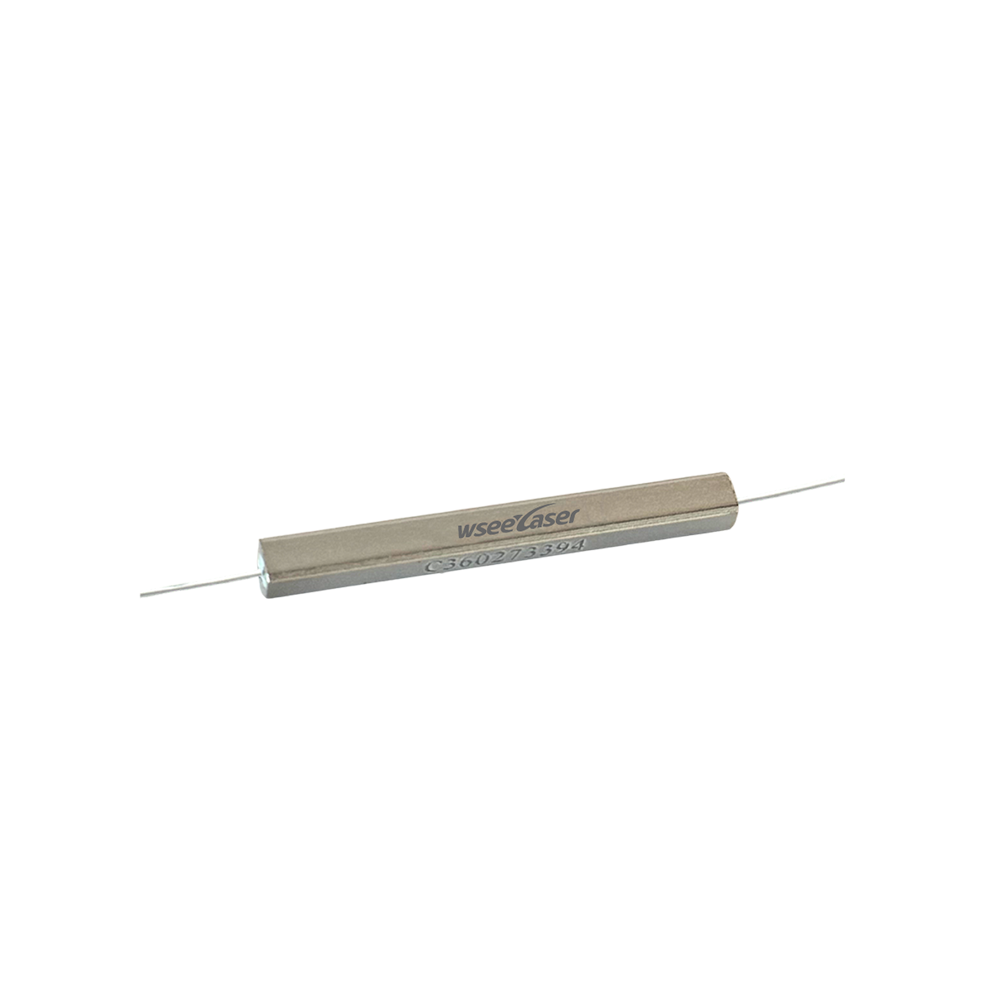

China Suppliers Multi-Mode Pump Combiner (2+1)×1 - High-Quality Factory Manufacturing Solutions

Discover high-quality products from our trusted China suppliers, specializing in manufacturing excellence at our state-of-the-art factory. With a commitment to delivering innovative solutions and superior craftsmanship, we proudly provide a diverse range of items tailored to meet your needs. Our dedicated team ensures that every product meets stringent quality standards, making us a leading choice among businesses seeking reliable partners. Explore our selection today and experience the advantage of collaborating with top-tier China suppliers and a fully equipped factory that prioritizes efficiency and customer satisfaction
    Contact us
    Product Details

    Product Features

    • High Signal Transfer Efficiency
    • High Pump Efficiency
    • Wavelength Insensitive
    • Custom Configurations Available

    Product Applications

    • Fiber optic communication systems
    • Cable TV CATV
    • Passive optical networks

    Product Parameters

    Parameters/Test conditions Min Typ. Max Unit Note
    1 Signal Operating Wavelength 1550 nm
    2 Pump Operating Wavelength 940 nm
    3 Pump Fiber Core Diameter 105 µm MM 105/125 0.22NA
    Cladding Diameter 125 µm
    Numerical Aperture 0.22 -
    4 Signal Input Fiber Core Diameter 10 µm PM1550-GDF
    Cladding Diameter 130 µm
    Numerical Aperture 0.12/0.46 -
    5 Signal Output Fiber PM1550 -
    6 Transmission efficiency 90 94 % JDSU 915nm Pump tested
    7 Signal Insertion Loss 0.5 dB
    8 ER 18 dB
    9 Optical Isolation 25 dB
    10 Fiber Length 1.0 M Each port
    11 Power Handling 10 W Each port
    12 Operating Environment Temperature -5 +70 oC
    13 Operating Humidity 5 95 %RH Not recommend in high humidity for long time.
    14 Storage Temperature -40 +85 oC
    15 Package C1 - Handling power is different with PKG

    Photoelectric properties

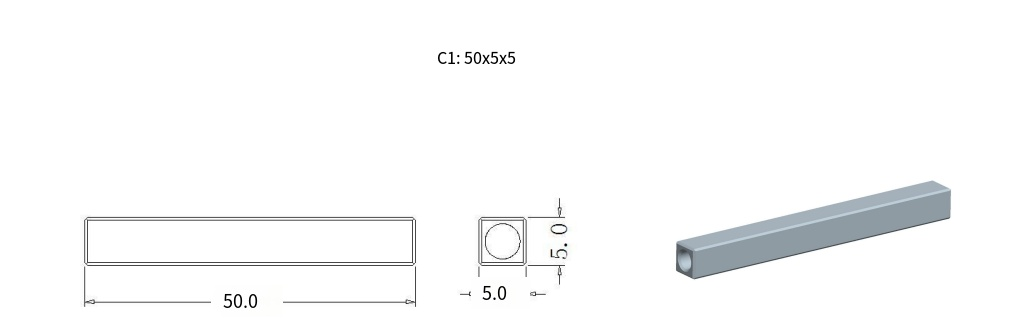

    Product size:

    L50*W5*H5 Unit: mm
    Product dimensions layout
    Frequently Asked Questions (FAQ)
    What is the typical signal operating wavelength for this device?
    The typical signal operating wavelength is 1550 nm, designed for optimal performance in standard fiber optic communication systems.
    What type of pump fiber is used in this product?
    This product utilizes a Multimode (MM) 105/125 fiber with a 0.22 Numerical Aperture (NA) for the pump port.
    What is the transmission efficiency under test conditions?
    It features a minimum transmission efficiency of 90% and a typical value of 94%, tested using a JDSU 915nm pump.
    Can this device handle high power applications?
    Yes, it has a maximum power handling capability of up to 10W per port. Note that the handling power may vary depending on the package configuration (PKG).
    Are custom configurations available for this product?
    Yes, custom configurations are available to meet your specific application requirements. Please contact our support team with your detailed specifications.
