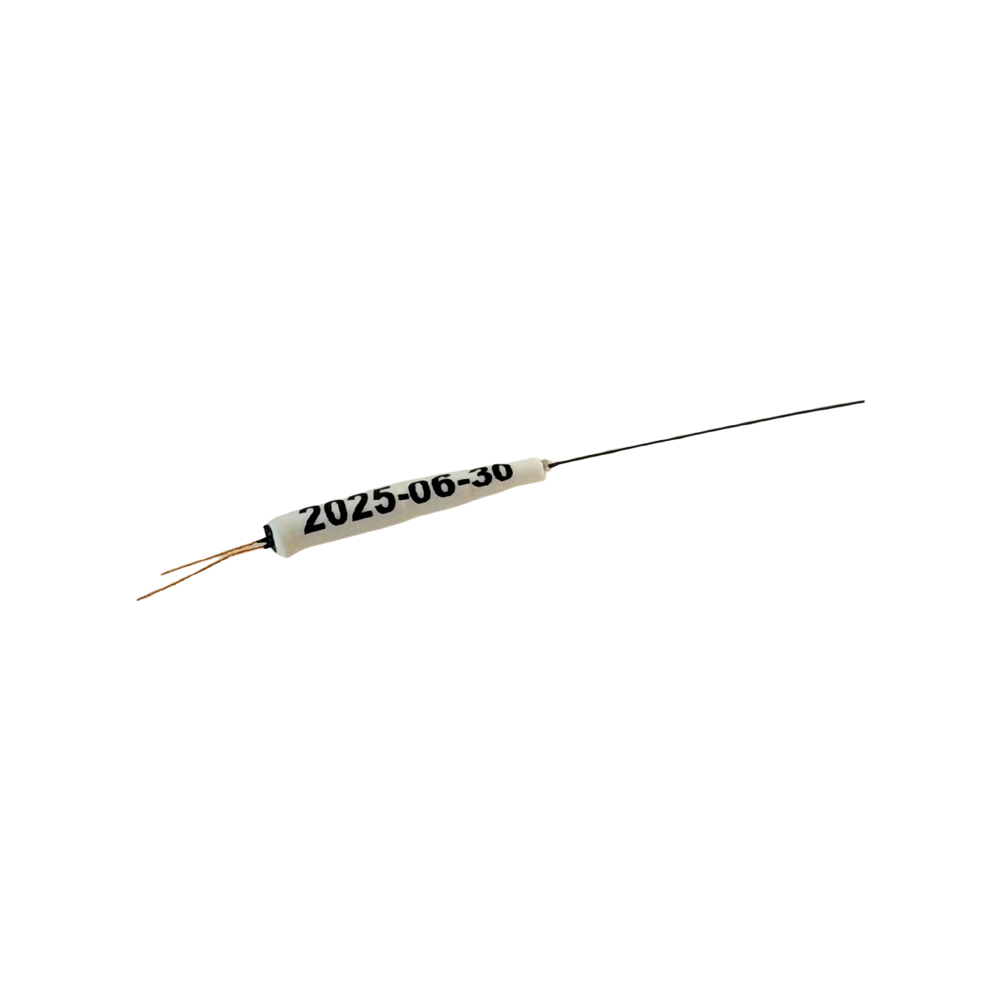

Coaxial MINI PD
Product Features
● High reliability and long service life
● High responsiveness, low return loss
● Low dark current
Product applications
● Fiber optic communication systems
● Optical power monitoring
● Optical protection
● Fiber optic transceiver
● Wavelength division multiplexing systems
Product Parameters
|
Parameter |
Min |
Typ |
Max |
Unit |
|
Environment Conditions |
||||
|
Operating Temperature t |
0 |
|
70 |
℃ |
|
Storage Temperature
|
-40 |
|
85 |
℃ |
|
Operating Relative Humidity |
5 |
|
95 |
% |
|
Storage Relative Humidity |
5 |
|
95 |
% |
|
Optical Specifications |
||||
|
Operation Wavelength |
1100 |
|
1650 |
nm |
|
Optical Power @1550nm |
5 |
|
|
dBm |
|
Return loss |
45 |
|
|
dB |
|
Electrical Specifications |
||||
|
Responsivity |
0.85 |
0.9 |
|
A/W |
|
Dark Current |
|
0.3 |
1 |
nA |
|
PD Bandwidth |
1 |
|
|
GHz |
|
Mechanical Specifications |
||||
|
Fiber Type |
|
Corning SMF28e |
|
|
|
Fiber Length |
|
≥1.0 |
m |
|
|
Fiber Color |
|
black |
|
|
Photoelectric properties

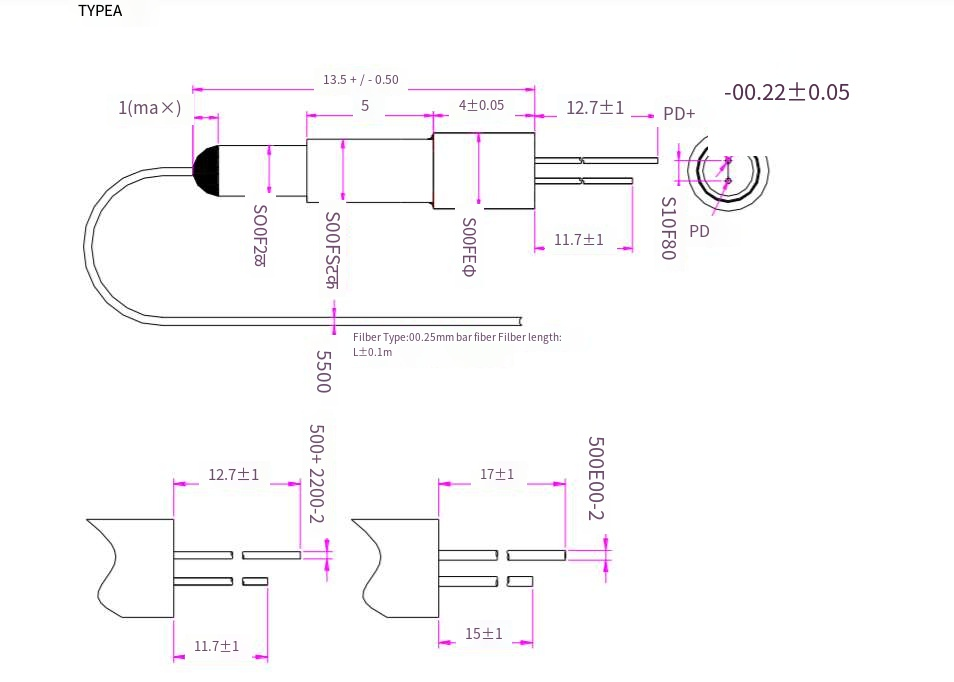

Product size:
(d*L) : 3*13.5 units: mm
