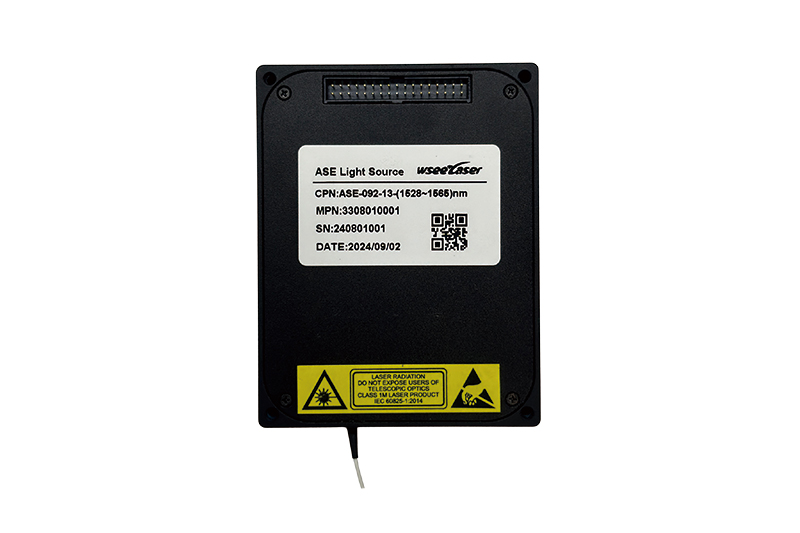

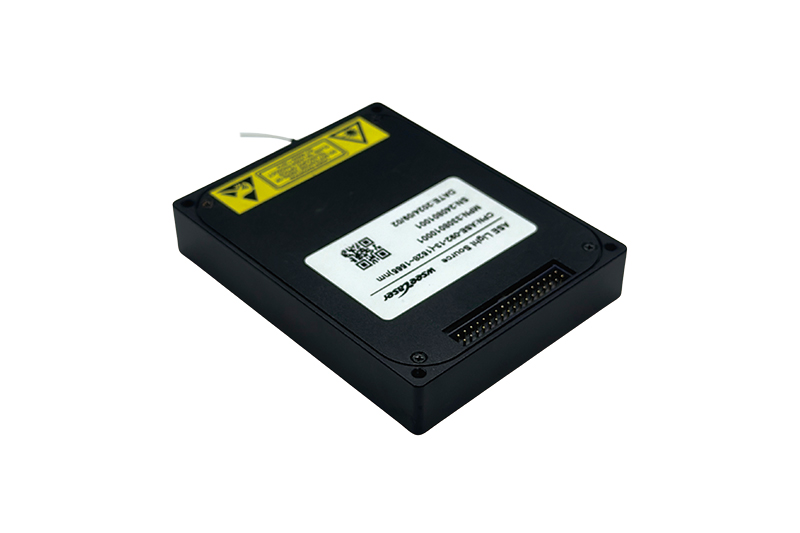

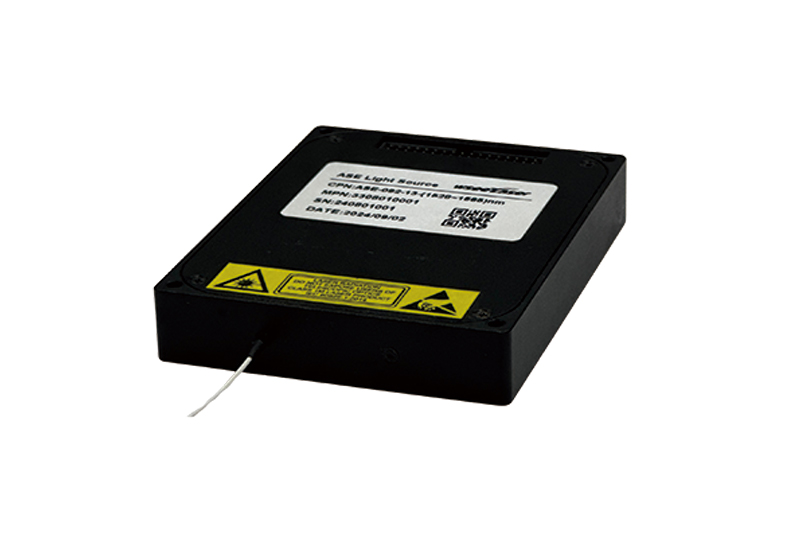

C+L Band ASE Light Source

Extended C/L-Band ASE Source MSA Form Factor 1528~1603nm, 5~50mW, Flatness <3dB

The C+L ASE light source is a broadband source based on Erbium-Doped Fiber Amplifier (EDFA) gain, offering advantages like wide spectral range and stable power. It is widely used in optical device production testing, fiber sensing, and more.

Product Inquiry: +86 15610114544

Product Inquiry Contact Us

product details

product description

• Excellent Spectral Characteristics: Operating wavelength range typically 1528-1603nm, spectral width up to 75nm, covering both C and L bands. Suitable for various applications requiring broad spectrum, such as testing device performance at different wavelengths during production.

• High Spectral Flatness: Utilizes spectral flattening technology achieving flatness better than 3dB. This ensures a relatively uniform power distribution across the output spectrum, guaranteeing consistency and accuracy in measurements or applications at different wavelengths, enhancing test and application precision.

• Output Power Advantage: Output power can reach 20mW or higher. Various power levels are available (e.g., 13dBm, 15dBm, 17dBm, 19dBm), providing sufficient optical power for device testing, fiber sensing, etc., meeting requirements for long-distance transmission or high optical power.

• Adjustable Power: Typically features power adjustability from 10% to 100% while maintaining spectral flatness. Users can precisely adjust output power according to actual needs, adapting to different test or application conditions.

• High-Precision Temperature Control: Employs a high-precision ATC system alongside specialized circuit design (ACC and APC), effectively controlling pump output to ensure laser output power stability, reducing the impact of temperature variations on performance for stable operation in diverse environments.

• Optimized Optical Path Design: Based on EDFA gain, the optical path design is simple with high optical-to-optical conversion efficiency, reducing losses and potential failure points. Global optical feedback control technology ensures stability of output power and spectral shape, enhancing source reliability.

• Multiple Form Factors: Available as compact modules for easy integration into other systems, or as benchtop units, meeting various user needs and installation conditions.

Working environment indicators

Parameters	Min	Typ	Max	Unit	Remarks
Operating Temperature	-5		55	℃
Storage Temperature	-40		85	℃
Working Relative Humidity	5		85	%	40° non-condensable
Store relative Humidity	5		90	%

Optical indicators

Parameters	Min		Typ		Max	Unit	Remarks
Operating Wavelength	1528				1602	nm
Size	(WLH)907015					mm
Output Fiber	SMF-28e,900um, white pine sleeve					nm
Output fiber Connector	FC/APC						custom made
Output Fiber Length	0.49	0.5		0.51		m	0.5+/-0.01m, including head, custom
Work Pattern	APC/ACC
No Optical Reported	-60					dBm
Output Power	-		-		17	dBm
Gain Flatness	-		-		3	dB	@Test at typical values
Short-term Output Power Stability	-		-		±0.01	dB	Fifteen minutes
Long-term Output Power Stability	-		-		±0.03	dB	Eight hours
Full Temperature Power Stability	-		-		5	%
Return Loss	45		-		-	dB
Insulation	-		35		-	dB
APC Output Power Can Be Set Within aRange	0		-		17	dBm	Set the precision to 0.1dB

Electrical indicators

3.1 Power Supply Parameters

Parameters	Min	Typ	Max	Unit	Remarks
Service Voltage	4.75	5.0	5.25	V
Supply Current	-	-	0.6	A
Power Dissipation	-	-	3	W

3.2 Pin Definition:

3.2.1 Communication interface type: 30/34Pin optional 2.00mm spacing, male socket

3.2.1.1 30pin pin definition, 2.00mm spacing, male socket

Pin	Name	Attribute	Level Type
1	+5V	P
2	+5V	P
3	+5V	P
4	+5V	P
5	the earth	P
6	the earth	P
7	NC	F
8	NC	F
9	the earth	P
10	the earth	P
11	NC	F
12	NC	F
13	NC	F
14	NC	F
15	NC	F
16	NC	F
17	NC	F
18	NC	F
19	NC	F
20	NC	F
21	GND	P
22	GND	P
23	Serial input	I	LVTTL
24	Serial output	O	LVTTL
25	GND	P
26	GND	P
27	+5V	P
28	+5V	P
29	+5V	P
30	+5V	P

3.2.1.3 34pin pin definition, 2.00mm spacing, male socket

Pin	Name	Attribute	Level Type
1	NC	F
2	NC	F
3	+5V	P
4	+5V	P
5	+5V	P
6	+5V	P
7	the earth	P
8	the earth	P
9	NC	F
10	NC	F
11	the earth	P
12	the earth	P
13	NC	F
14	NC	F
15	NC	F
16	NC	F
17	NC	F
18	NC	F
19	NC	F
20	NC	F
21	NC	F
22	NC	F
23	GND	P
24	GND	P
25	Serial input	I	LVTTL
26	Serial output	O	LVTTL
27	GND	P
28	GND	P
29	+5V	P
30	+5V	P
31	+5V	P
32	+5V	P
33	NC	F
34	NC	F

Note 1: P: power; I: input; O: output; F: suspended.

Serial communication protocol: (Special protocol can be customized and developed)

4.1 Serial Port Parameters:

parameter	price	unit
Baud rate	9600	Bit/s
data bit	8	Bit
stop bit	1	Bit
check bit	not have

4.2 Communication Protocol: Customizable

Communication protocol format: Downlink command start flag bit first byte 55, second byte AA, uplink command return start flag, first byte AA second byte 55.

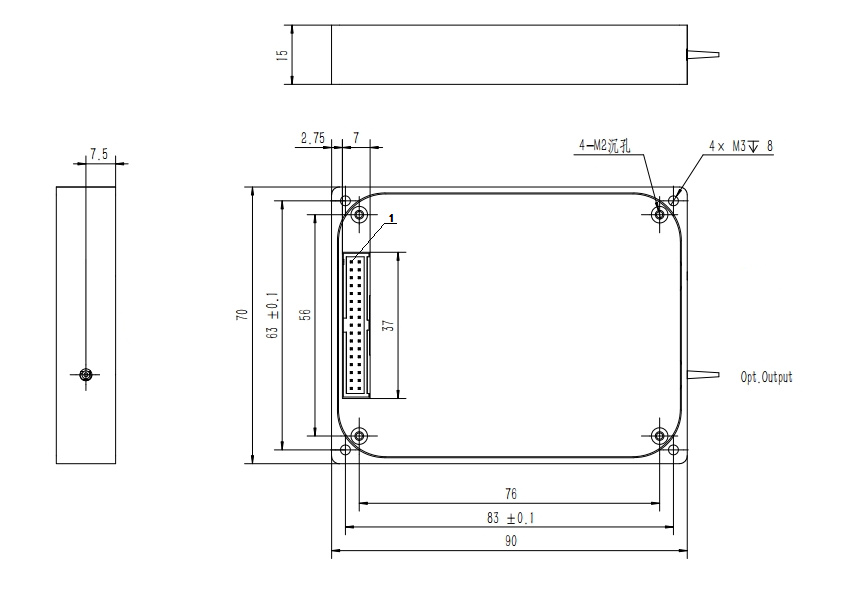

Structure appearance

5.2 Mechanical Size: 90*70*15mm
