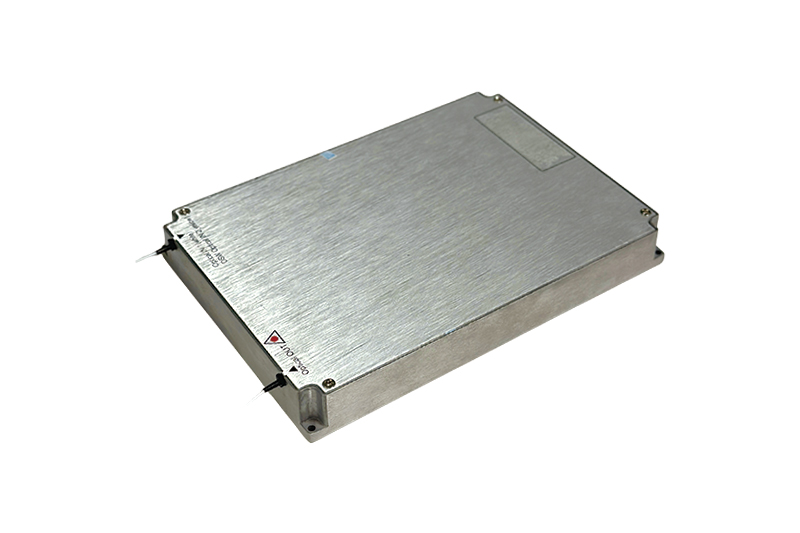

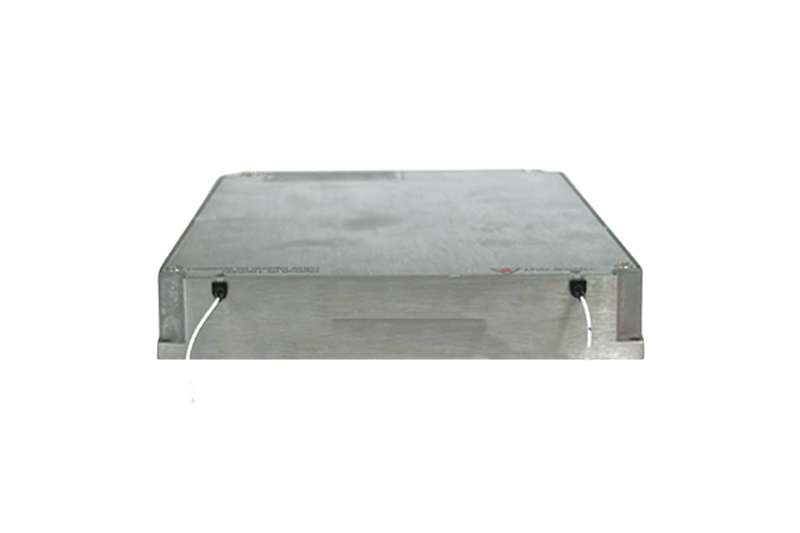

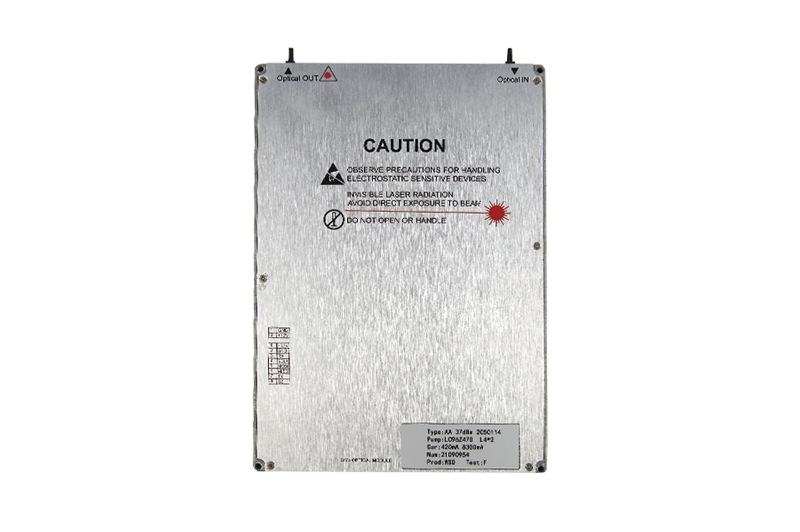

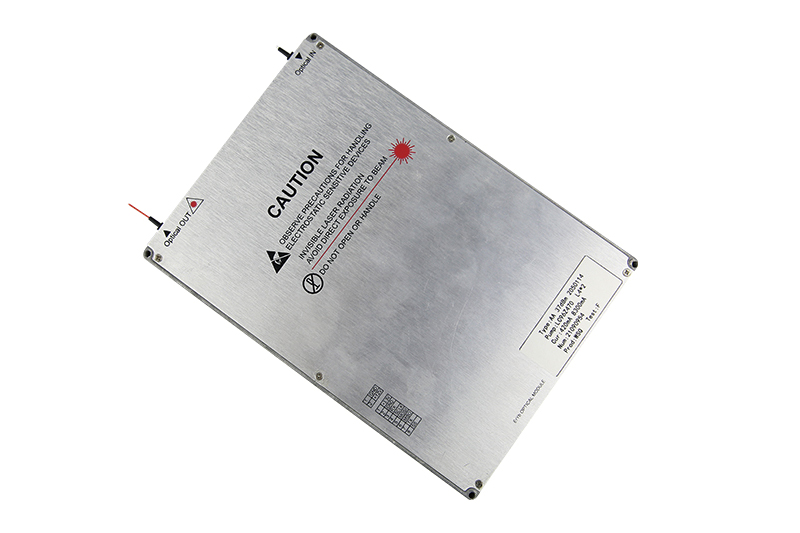

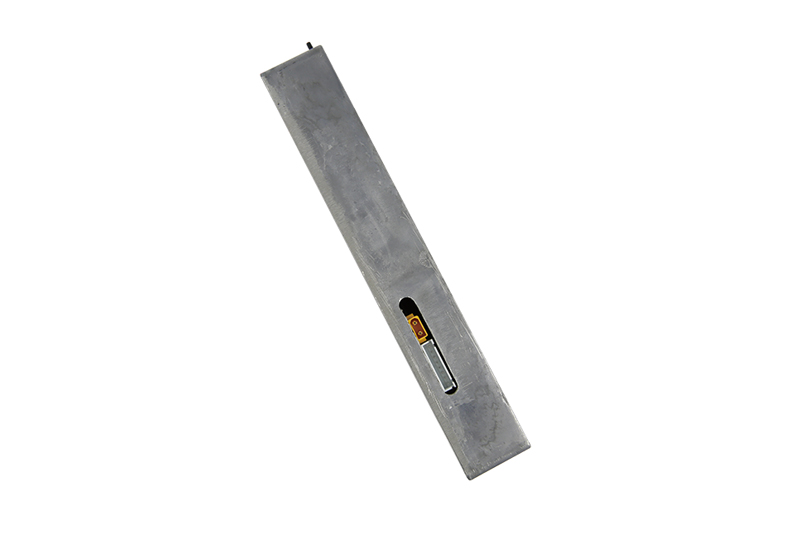

EYDFA Series

40dBm High Power EDFA

Product
● The saturated output optical power is up to 40dBm
● low noise
● low power consumption
● There are three working modes: APC and ACC
● customizable

Product Inquiry: +86 15610114544

Product Inquiry Contact Us

product details

product description

The High-Power Erbium-Ytterbium Co-doped Fiber Amplifier with 10W output offers advantages like extended transmission distance, wide applicability, and good signal quality:

• Increased Transmission Distance: High power output provides stronger optical signal energy, effectively compensating for losses during fiber transmission and extending reach. Suitable for long-haul systems (e.g., trunk lines, MANs), reducing the number of required repeaters and lowering system costs.

• Wide Application Range: The 10W high-power output meets various application needs: covering more optical nodes in CATV systems serving many users; enhancing sensitivity and monitoring range in fiber sensing; providing high-power light sources for LIDAR, improving detection range and accuracy.

• Assured Signal Quality: Based on EYDFA technology, it maintains low noise levels while achieving high power output, ensuring transmission quality. High gain coefficient enables efficient signal amplification, reducing distortion and attenuation, improving SNR, allowing accurate signal recovery at the receiver.

• Good Temperature Stability: EYDFAs have low temperature sensitivity. Coupled with comprehensive heat dissipation design and high-precision ATC circuits, the 10W amplifier maintains stable performance across a wide temperature range, reduces demands on temperature control systems, and improves reliability under different environmental conditions.

• Optimized Optical Path Design: Incorporates an optimized internal optical path structure and telecom-grade pump lasers to achieve high saturation power amplification output. Some products feature adjustable output power (typically 10% - 100%), allowing users to flexibly set levels based on needs, enhancing convenience and adaptability.

Product Applications

● CATV

● ladar

● Nonlinear optics research

Product Parameters

Parameters	Min	Typ			Max		Unit
Wavelength Coverage	1540	-			1565		nm
Number of Channels		1
Input Power	-5	-			+10		dBm
Output Power	23	-			40		dBm
Noise Finger	-	-			6		dB
High Temperature Shutdown Threshold	-	65			-		℃
Return Loss	45	-			-		dB
Polarization-Dependent gain		-			0.5		dB
Working Temperature	-5	-			+55		°C
Storage Temperature	-40	-			85		°C
Relative humidity (non-condensation)	5	-			85		%
Product Size		20014225				mm
Power Consumption				130		W
Supply Voltage		11.75	12	12.25		V
Communication Level		LVTTL

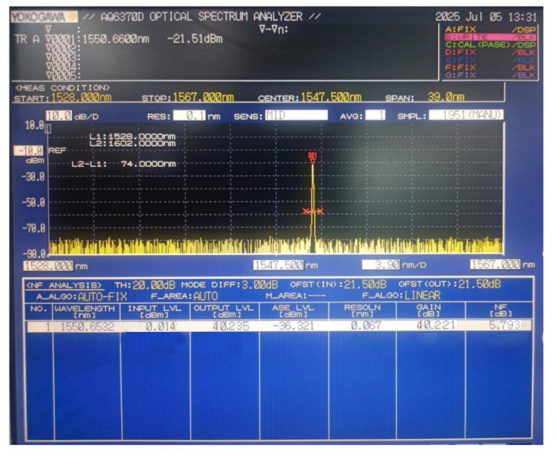

Data Test Curve

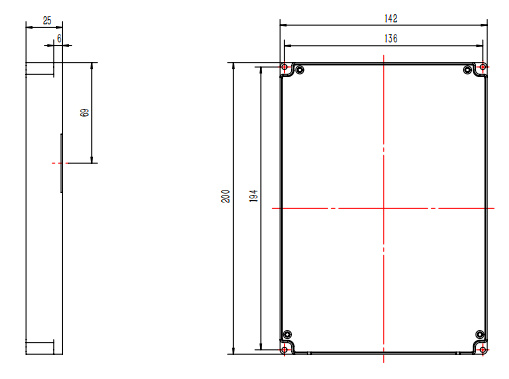

Product Size

Product Ordering Guide

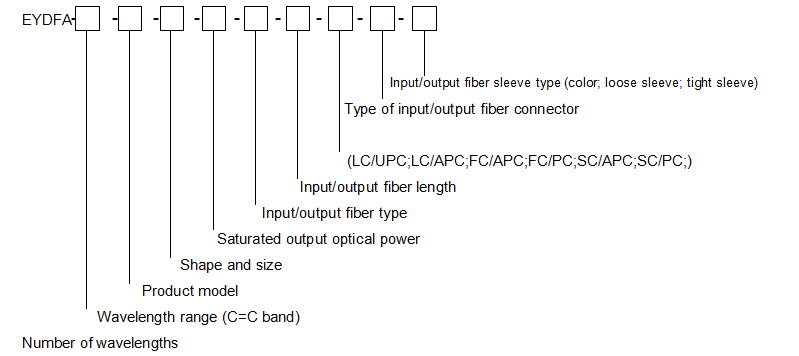

EYDFA-S-C-M511-200*142*25-40/XX-0.9-FC/APC-1-White loose tube

EYDFA: Erbium ytterbium co-doped fiber amplifier

S： single channel

C：C wave band

M511: Product model

200*142*25: external dimensions

40/xx: The saturated output optical power is 40dBm

0.9: Input/output fiber type SMF-28e,900um

FC/APC: Type of fiber optic connector

1: Input and output fiber length is 1m

White loose tube: fiber optic tail fiber tube type
