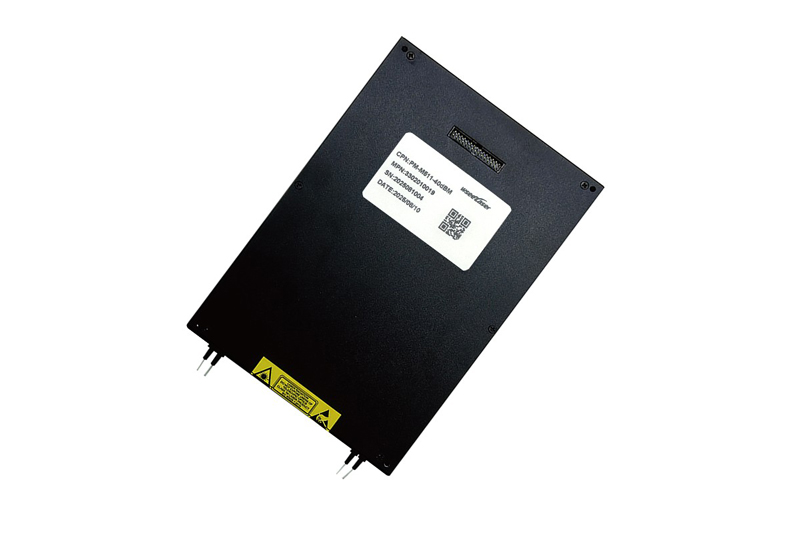

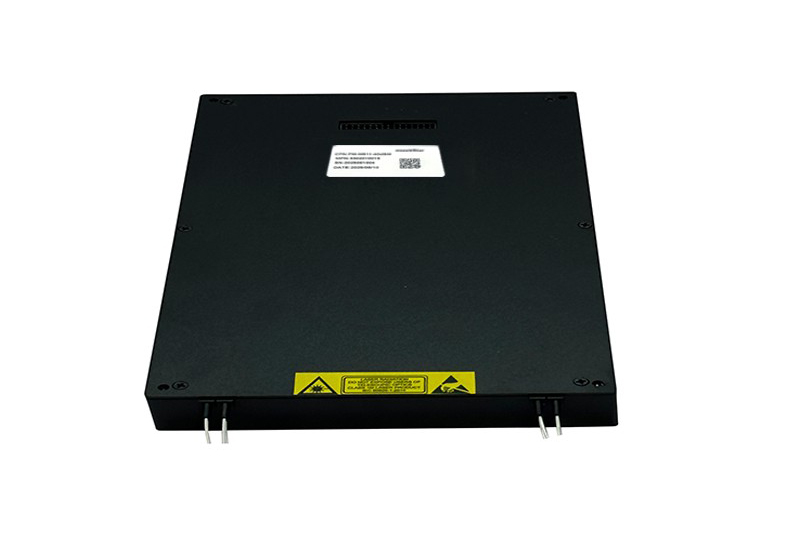

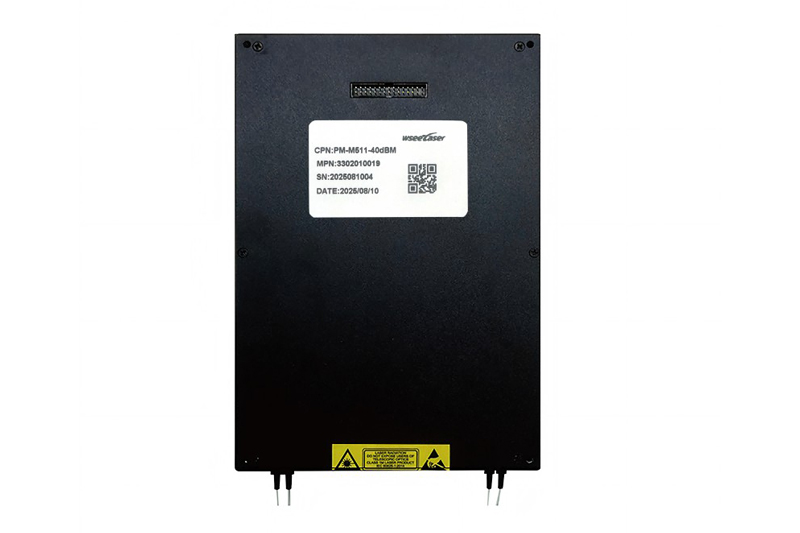

High Power PM EDFA 1550nm 40dBm EDFA Optical Amplifier

Product
The PM EDFA (Polarization-Conserving Erbium-Doped Fiber Amplifier) is a specialized amplifier designed for polarization-conserving optical communication systems. It enables stable polarization state maintenance in long-distance, high-speed fiber transmission networks (e.g., 100Gbps and beyond), facilitating coherent detection. By detecting polarization state variations, it can sense external physical quantities. In quantum key distribution (QKD) systems, optical quantum states (including polarization states) serve as the fundamental information carriers.
● The power value can be 10W output for a single fiber;
● Light loss ratio>20dB
● Low power consumption
● Can be customized

Product Inquiry: +86 15610114544

Product Inquiry Contact Us

product details

Product description

Furthermore, PM EDFAs provide high gain, effectively amplifying optical signals to meet long-distance transmission requirements. They also achieve high output power, with some models reaching up to 10 Watts, delivering sufficiently strong optical signals to extend transmission distance and coverage. Their key characteristic is a high Polarization Extinction Ratio (PER). This enables better separation of light signals in different polarization states, reducing polarization-dependent signal interference. In applications requiring high PER, such as fiber sensing, this enhances sensing accuracy and reliability.

Product Applications

● Coherent optical communication system

● Optical fiber sensing system

● Quantum communication networks

● High precision measurement and scientific research

● Military and aerospace

Product Parameters

Parameters	Min	Typ			Max	Unit
Wavelength	1540	-			1565	nm
Input Power	-10	-			+10	dBm
Output Power	20	-			40	dBm
Noise Figure		5.5			6	dB
Extinction Ratio	18	20				dB
Return Loss	45	-			-	dB
Polarization-Dependent Gain		-			0.5	dB
Working Temperature	-5	-			+55	°C
Storage Temperature	-40	-			85	°C
Relative Humidity (non-condensation)	15	-			85	%
Product Size		20014225				mm
Power Consumption				80		W
Supply Voltage		14.75	12	15.25		V
Communication Level		LVTTL

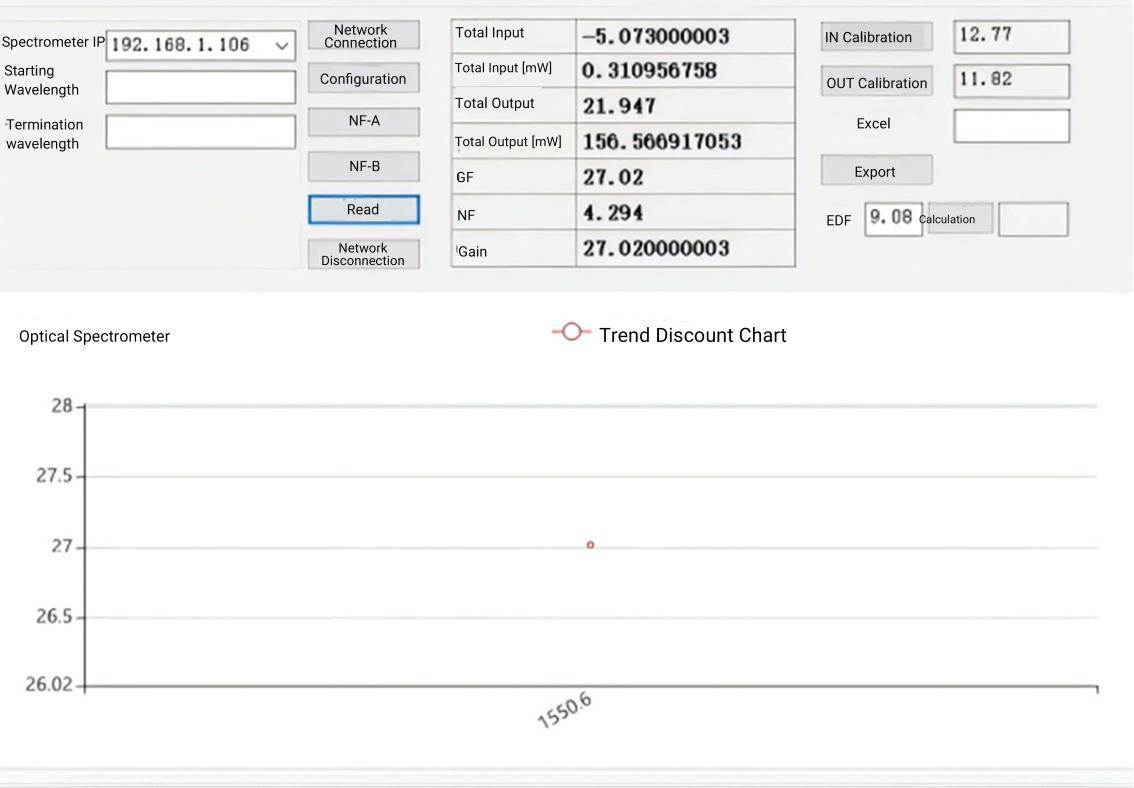

Test Data Curve

Product Size

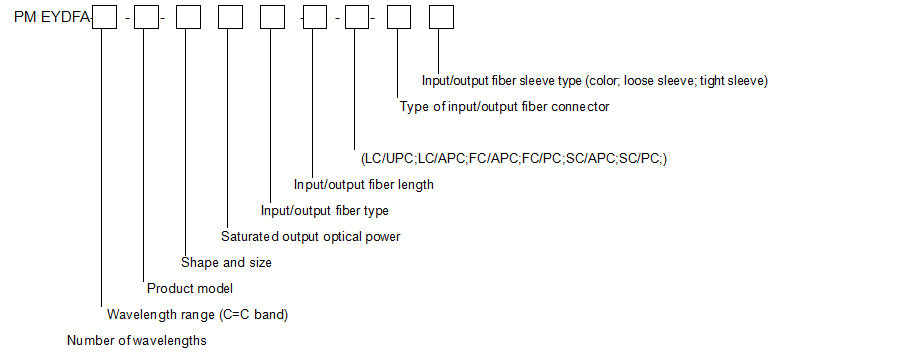

Product Ordering Guide

PM EYDFA-S-C-M511-200*142*25-40/XX-0.9-FC/APC-1-White pine casing

EYDFA: Erbium ytterbium co-doped fiber amplifier

S： single channel

C：C wave band

M511: Product model

200*142*25: external dimensions

40/xx: The saturated output optical power is 40dBm

0.9: Input/output fiber type SMF-28e,900um

FC/APC: Type of fiber optic connector

1: Input and output fiber length is 1m

White loose tube: fiber optic tail fiber tube type
