Mini EDFA-18dBm
EDFA Customized Series

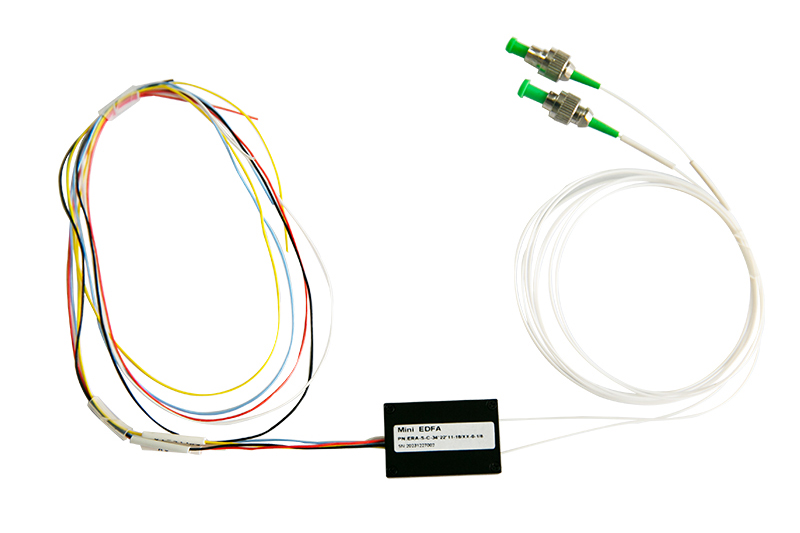

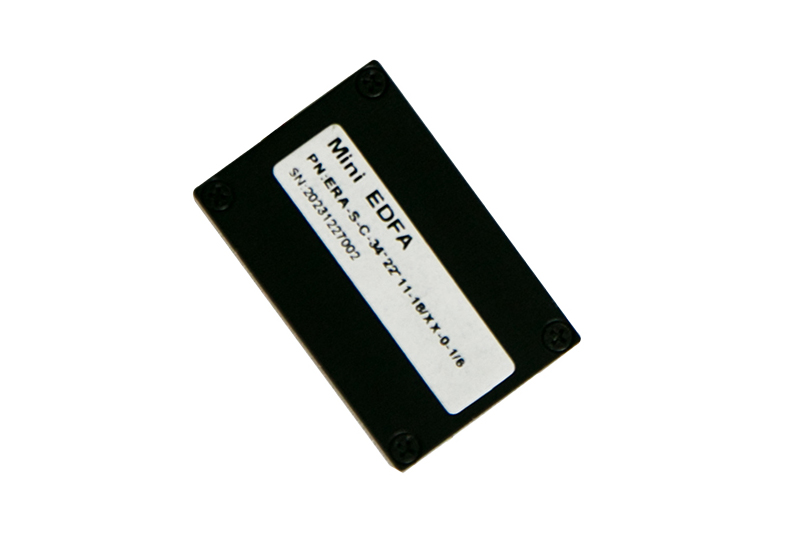

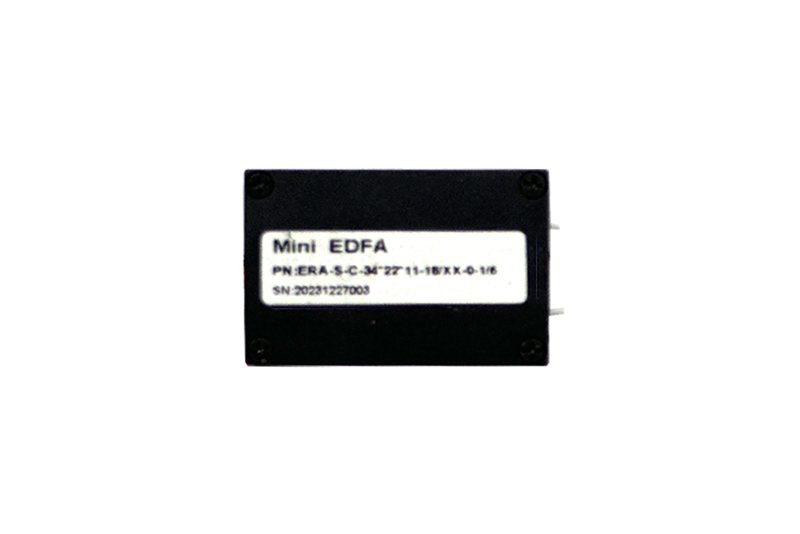

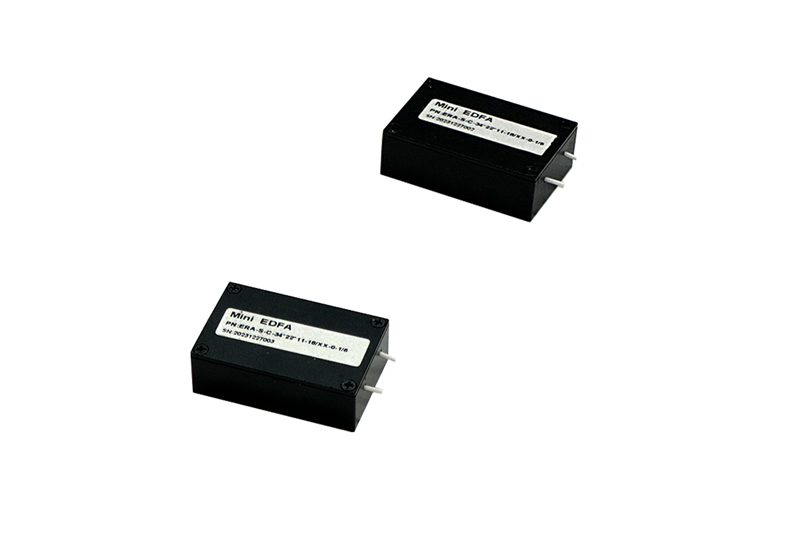

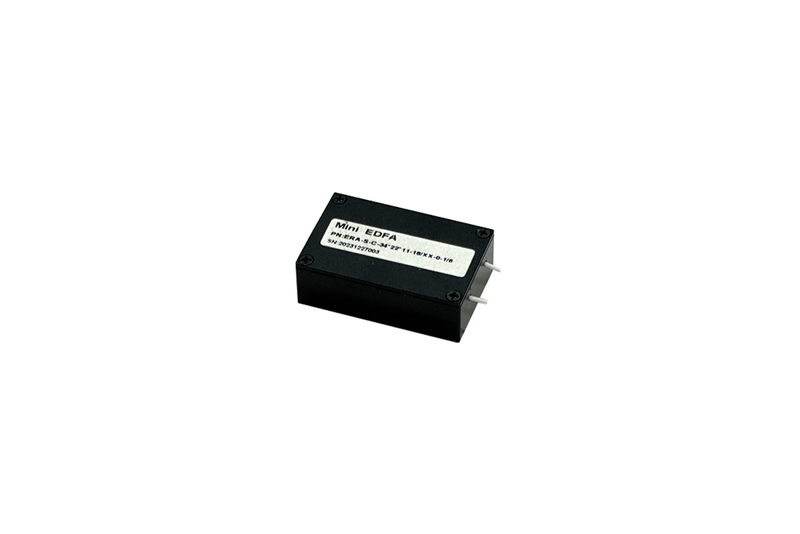

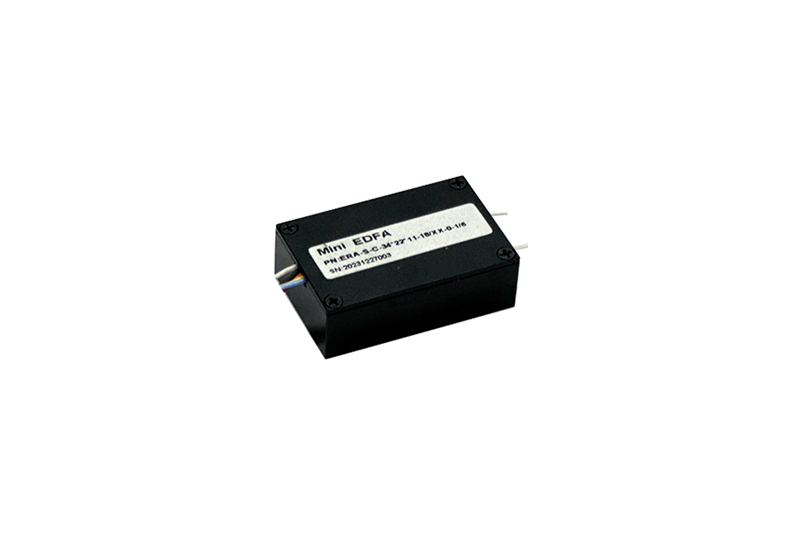

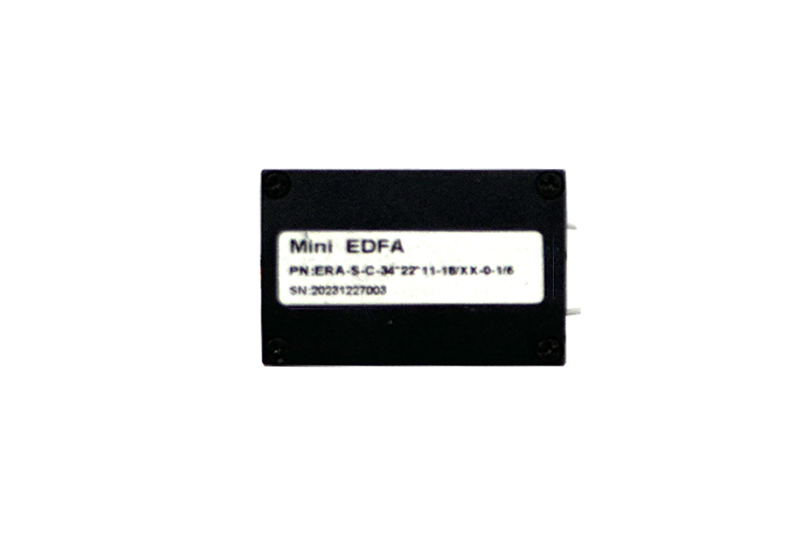

Mini EDFA-18dBm

Product
Small mini EDFA products feature very compact size, low power consumption, and excellent performance, suitable for high-speed optical communication systems, fiber access networks, etc.

    Product Inquiry: +86 15610114544
    Product Inquiry Contact Us
    product details

    Product description

    • Ultra-Small Size: Extremely small package size (34*22*11mm), highly integrated, effectively saves space. Suitable for applications with stringent volume requirements.
    • Low-Power Design: Uses small components and low-bend-radius fiber design. Powered by 3.3V, low power consumption (typical 1.5W, max 2.0W). Reduces energy consumption and thermal load,meeting green energy requirements.
    • Strong Signal Amplification Capability: Supports amplification of single-wavelength and narrowband signals across the full C-band. High output power, some models up to 18dBm. Provides effective gain for optical signals, meeting the need for power amplification of high-speed optical modules in transmission systems.
    • Low Noise Figure: Good noise performance, e.g., noise figure below 6dB for +5dBm input signal. Reduces noise introduced during amplification, ensures signal quality, and improves system SNR.
    • Flexible Operating Modes: Supports ACC and APC operating modes. Users can select based on actual needs to conveniently control the amplifier's operating state for different application scenarios.
    • High Stability: Employs high-precision ATC and APC circuits to ensure output power stability. Some products have MTTF >150,000 hours and operate stably across a wide temperature range (e.g., -25°C to +55°C).

    Product features

    ● Super compact structure
    ● Output power can reach 18dBm
    ● Low noise: ≤5.5dB;
    ● Ultra-low power consumption: the power consumption of the whole machine is <3W;
    ● There are two working modes: APC and ACC
    ● Support customizable

    Product Applications

    ● Data communication
    ● CATV or SDH system

    Product Parameters

    Parameters

    Min

    Typ

    Max

    Unit

    Wavelength Coverage

    1528

    1550.12

    1565

    		 nm

    Input Power

    -15

    -12

    +5

    dBm

    Output Power

    6

    10

    		 18

    dBm

    Noise Finger

    		 - -

    5.5

    		 dB

    Working Temperature

    -25

    -

    +55

    °C

    Storage Temperature

    -40

    -

    85

    °C

    Relative Humidity (non-condensation)

    5

    -

    85

    %

    Product Size

    34*22*11

    mm

    Power Consumption

    3

    W

    Supply Voltage

    -

    3.3

    -

    V

    Communication Level

    LVTTL

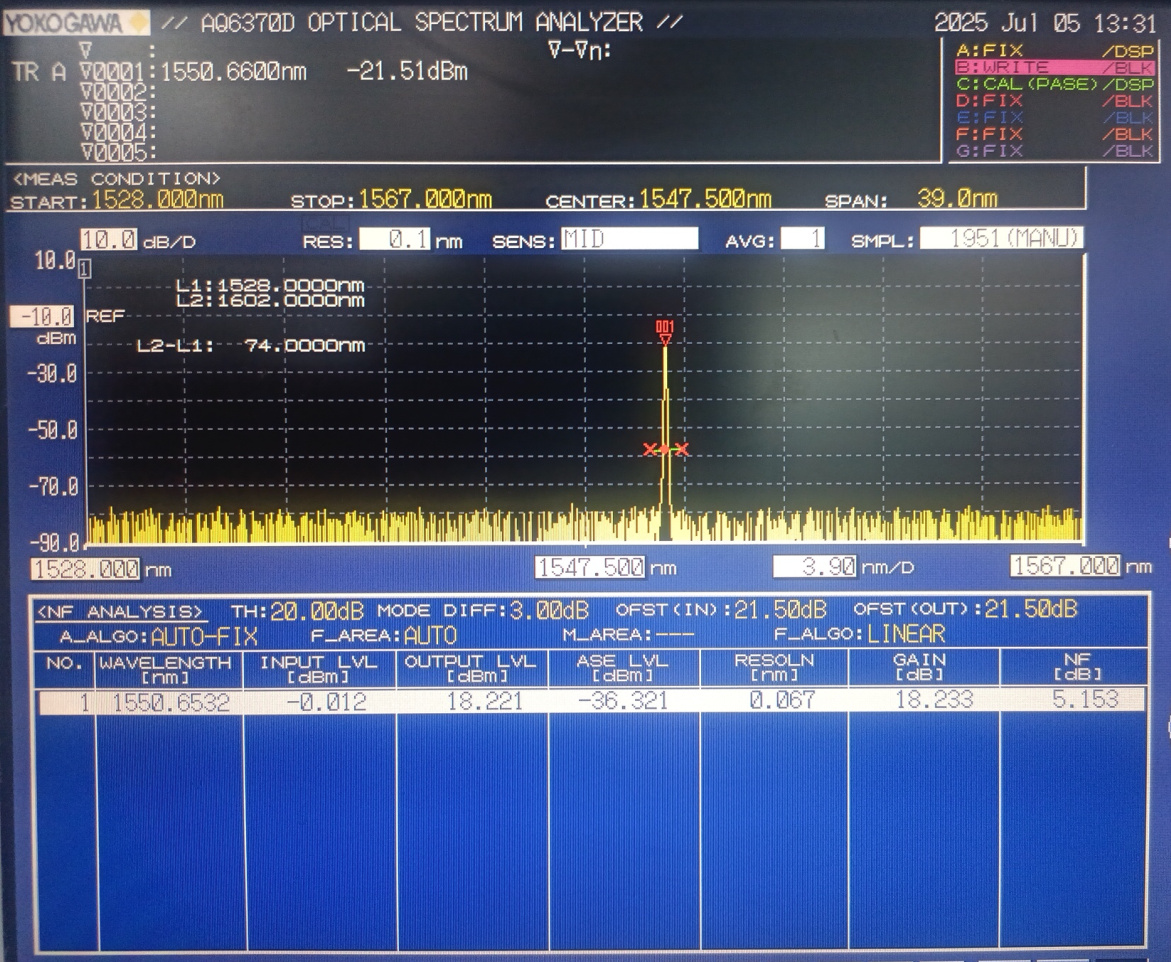

    Test Data Curve

    product description01

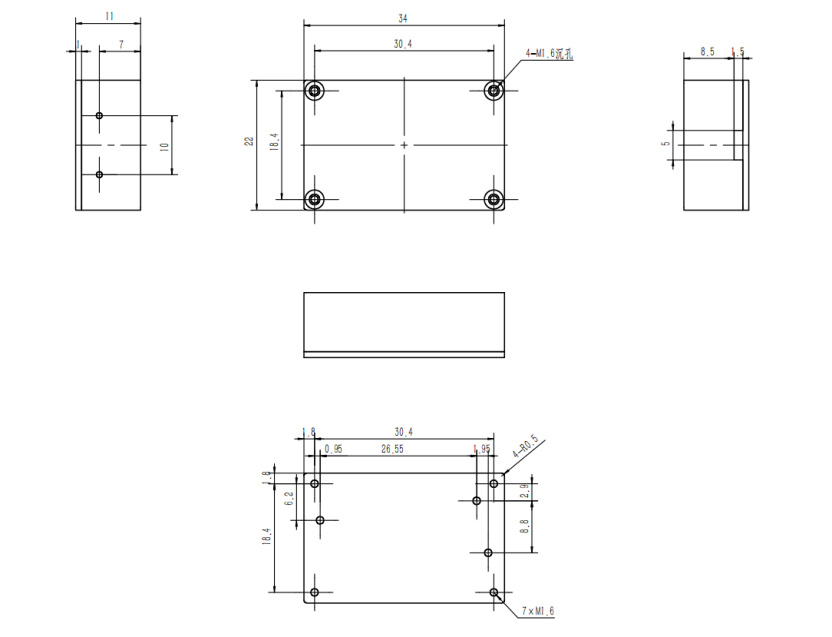

    Product Size

    product description02

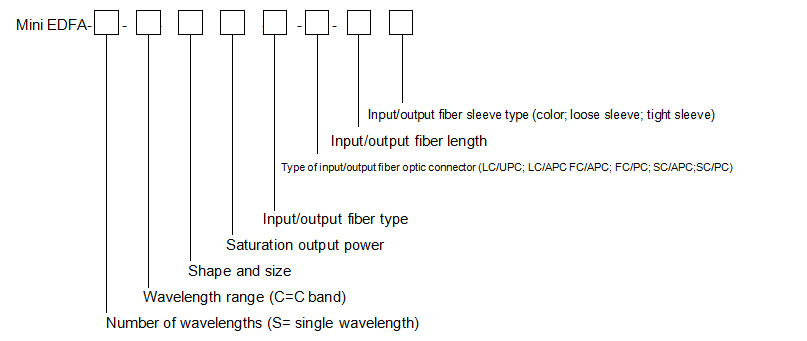

    Product Ordering Guide

    product description03
    • MiniEDFA-S-C-34*22*11-18/xx-0.9-LC/UPC-1-White pine casing
      MiniEDFA: Mini optical fiber amplifier
      S: Single wavelength
      C：C wave band
      34*22*11: external dimensions
      18/xx: 18= saturated output power 18dBm
      0.9: Input/output fiber type SMF-28e,900um
      LC/UPC: Type of fiber optic connector
      1: Input and output fiber length 1m
      White loose tube: fiber optic tail fiber tube type
