Rackmount DWDM EDFA C-Band 24dBm EDFA Output Fiber Optical Amplifier
Communication Field

Rackmount DWDM EDFA C-Band 24dBm EDFA Output Fiber Optical Amplifier

Product
● Provide OEM customized services according to customer requirements.
● Low noise figure, low power consumption, power consumption < 20W.
● Wide operating wavelength range:1528nm~1565nm.
● Standard RJ-45 Network management interface.
● Dual power supply design, one button pull, can be replaced online.
● Gain flatness≤±1dB.
● Independent LCD display, convenient monitoring equipment working status.
● Standard 1U rack mounted, easy to install and maintain.

    Product Inquiry: +86 15610114544
    Product Inquiry Contact Us
    product details

    Product description

    The 1U Rack-mount EDFA product features high integration, high performance, and high reliability, suitable for various fiber optic communication scenarios:
    • Compact Size: Complies with 1U standard dimensions (~44.45mm height). Compact structure allows installation in standard racks, effectively saving room space, facilitating centralized placement and management with other comms equipment, improving space utilization.
    • Stable Output Power: Uses highly reliable Pump lasers as core components, combined with unique APC and ATC circuits, ensuring high output power stability and consistent, stable optical signal amplification.
    • Excellent Gain Performance: Typically features high gain, covering common wavelength ranges like the C-band, providing sufficient gain for optical signals. Some products include low-noise, high-flatness design to reduce signal distortion and improve transmission quality.
    • Low Noise Figure: Utilizes optimized optical design and high-quality gain medium for low noise figure, typically around 5.0dB. Reduces noise introduced during amplification, helps improve system SNR, and ensures signal quality over long distances.
    • Reasonable Thermal Design: Some products feature proprietary intelligent thermal management. When the unit temperature exceeds 35°C, a powerful fan activates; it stops below 30°C. Combined with professional airflow design, this ensures thermal stability and extends fan lifespan.
    • Convenient Monitoring & Management: Equipped with comprehensive management interfaces (e.g., RS232, RJ45 Ethernet). Ethernet management is compatible with standard SNMP protocol. Remote monitoring and management via PC software allow operators to check status, set parameters, and troubleshoot easily.
    • Reliable Power Supply Design: Supports hot-swappable dual redundant power supply design, providing backup for room power systems, increasing product MTBF. Ensures continuous operation even if one power supply fails, preventing service interruption.

    Product Applications

    ● Telecom
    ● Data Center
    ● 5G Network
    ● Long Distance Network
    ● DWDM System

    Technical parameters

    Description

    Min

    Typ

    Max

    Unit

    Note
    Input Optical Wavelength

    1528

    -

    1565

    nm

    customize

    Input Power

    -33

    -

    +12

    dBm

    Output Power

    10

    		 　 -

    24

    dBm
    Gain

    9

    33

    dB
    Noise Figure

    -

    5

    6

    dB

    Gain Flatness

    -

    1.5

    -

    dB

    Output Power Stability

    -

    0.1

    -

    dB

    Polarization-Dependent Gain

    -

    -

    0.5

    dB

    PMD

    -

    -

    0.5

    ps

    Return Loss

    45

    -

    　-

    dB

    Working Temperature

    -5

    -

    55

    dB

    Storage Temperature

    -40

    -

    85

    dB

    Power Consumption

    -

    -

    20

    W

    Mounting

    19’’ Rack 1U

    -


    Product Size

    438*234*44

    mm


    Connector Type

    LC/UPC

    -

    customize
    Supply voltage

    AC100~265 or DC 35~65

    V

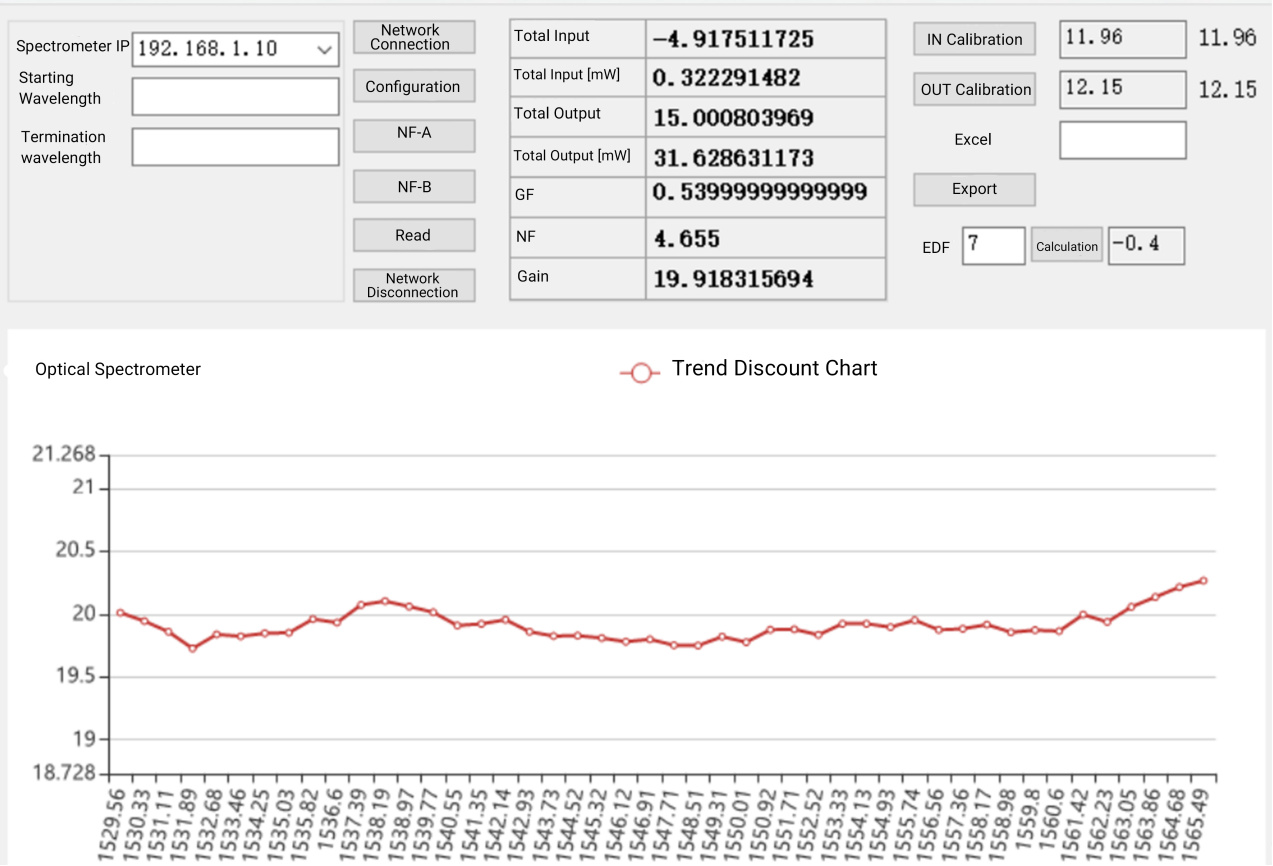

    Test Data Curve

    product description01
