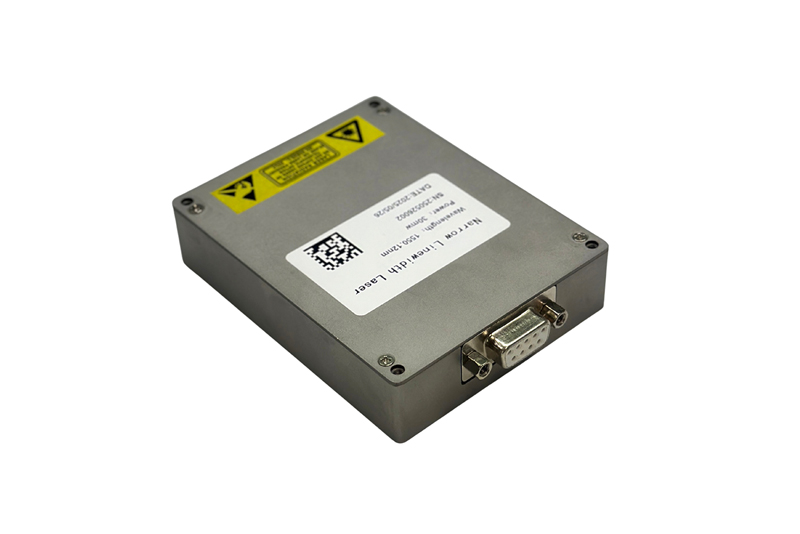

Narrow Linewidth Laser

Reliable Narrow Linewidth Laser < 3kHz < 120dBc/Hz @1MHz MSA Form Factor

Narrow Linewidth Laser products feature narrow spectral linewidth, high frequency stability, and strong environmental adaptability

Product Inquiry: +86 15610114544

Product Inquiry Contact Us

product details

product description

• Narrow Spectral Linewidth: Spectral linewidth <3kHz. The narrow linewidth concentrates the optical signal better in the frequency domain with higher spectral purity.

• High Frequency Stability: Output laser frequency is stable, reducing issues like signal errors caused by frequency fluctuations. Widely used in fields requiring extremely high frequency stability, such as optical precision measurement and quantum precision measurement.

• Strong Resistance to Dispersion: The narrow spectral linewidth helps reduce chromatic dispersion effects during fiber transmission. Can serve as a light source in fiber optic communication systems for high-speed data transmission and long-distance communication.

• Compact & Lightweight Structure: Employs technologies like modular design to achieve narrow linewidth and high power output while maintaining small size for easy installation and use.

• Strong Environmental Adaptability: Utilizes all-fiber design and fully sealed structure with strong anti-interference capability, enabling stable operation in various complex environments.

• Good Modulation Characteristics: Products feature high modulation bandwidth and fast frequency modulation capabilities.

Working environment indicators

Parameters	Min	Typ	Max	Unit	Remarks
operating temperature	-10		55	℃
Storage temperature	-40		85	℃
Working relative humidity	15		85	%	40° non-condensable
Store relative humidity	10		90	%

Optical indicators

Parameters	Parameter ValueRange
Laser wavelength	1550nm±0.4nm Or ITU wavelength (1530~1565nm)
Laser linewidth	＜3kHz
noise-signal ratio	＞50dB
Relative intensity noise	<-100dB/Hz@peak frequency; <-120dB/Hz@1MHz
Tunable wavelength (nm)	±0.2nm
Rapid resonance frequency	＞300kHz
Output power	10-60mW (customizable)
Power stability	<±1% (8 hours); short-term stability (15min)<0.03dB
Wavelength stability	0.2pm (1 h); short-term stability (15min)<0.1pm
Working temperature	-10~50℃
Output pigtail	FC/APC SM1550 single-mode fiber
Size	907020mm
Power supply interface	DB9 or throw the line
Communication interface	RS232

Electrical indicators

3.1 Power supply parameters:

Parameters	Min	Typ	Max	Unit	Remarks
service voltage	4.75	5.0	5.25	V
supply current	-	-	3.0	A
power dissipation	-	-	15	W

3.2 Pin definition:

3.2.1 Communication interface type: wire throw or DB9 interface

Shipped interface definition:

pigment	type	functional description
red	source +	+5V
black	source -	GND
white	SGND	communication GND
yellow	TX	communication TX
blue	RX	communication RX

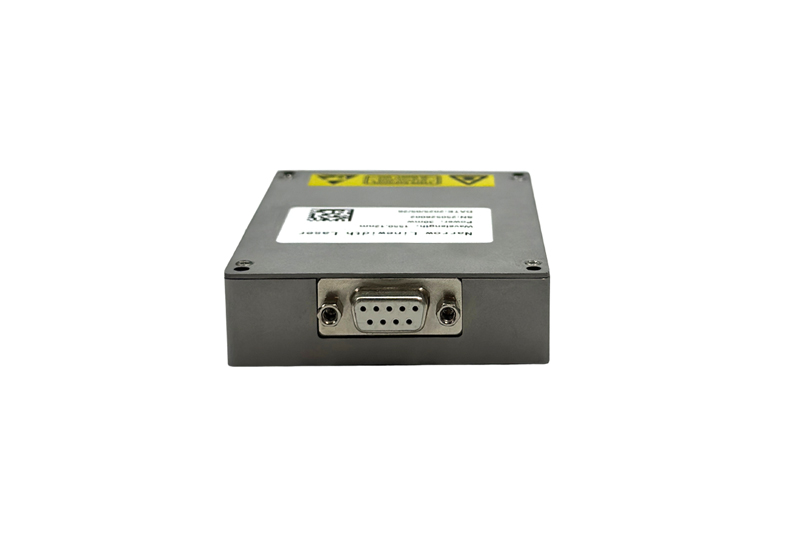

DB9 interface definition

order number	definition
1	NC
2	TXD
3	RXD
4	NC
5	GND
6	+5V
7	GND
8	+5V
9	GND

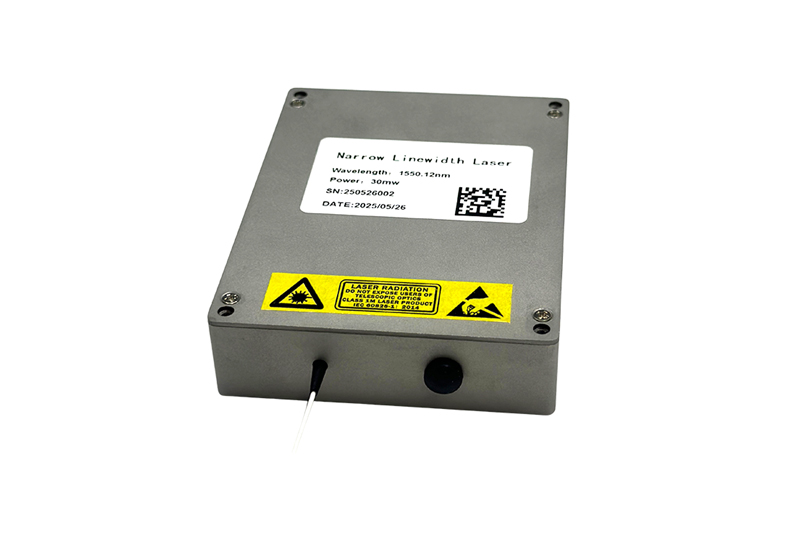

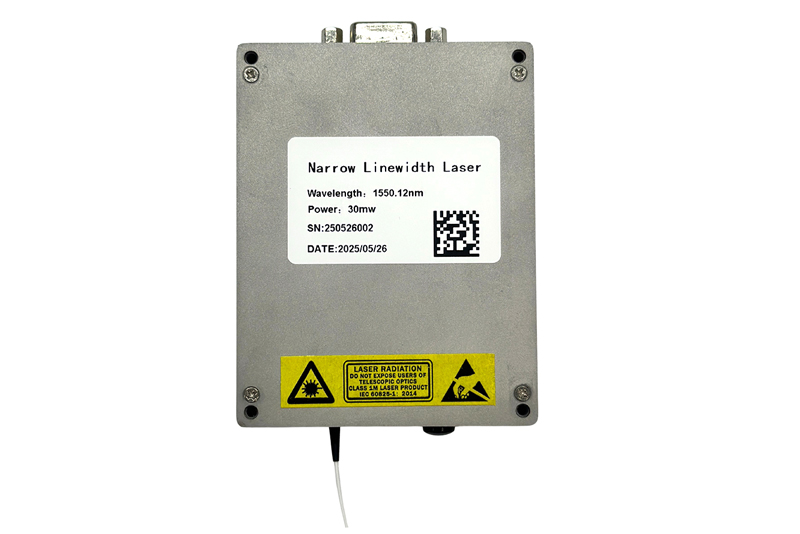

Structure appearance

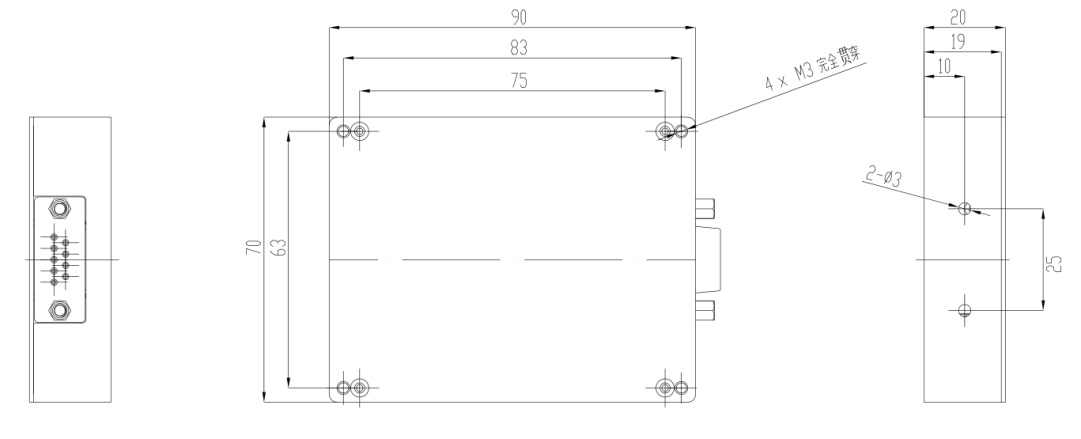

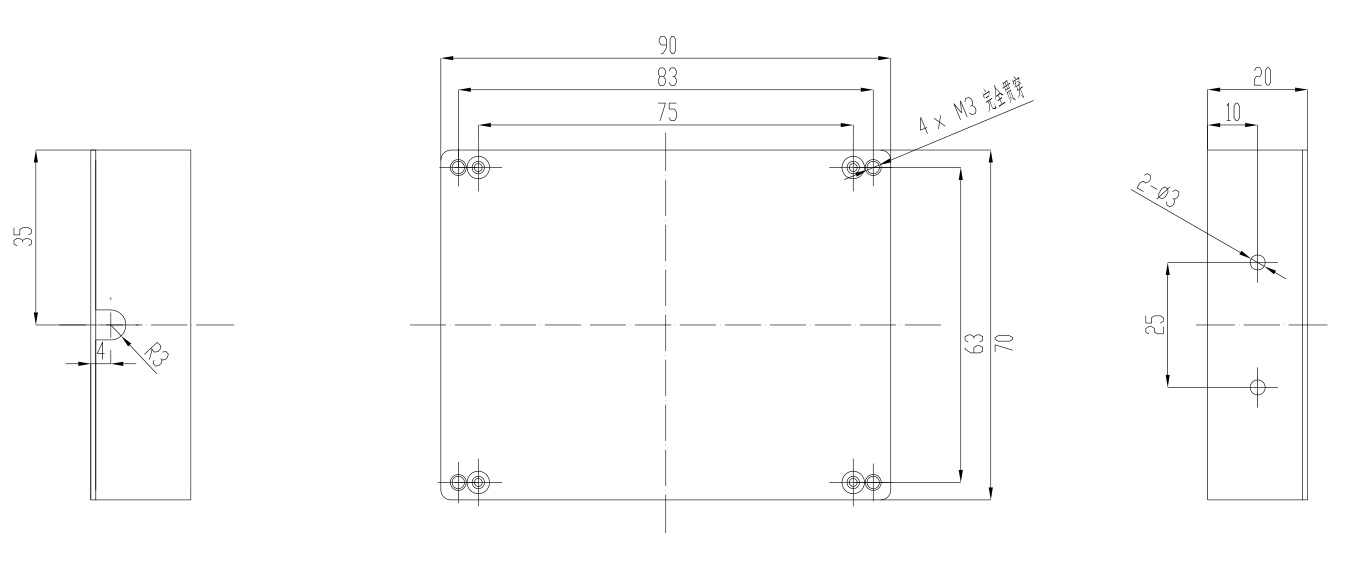

5.1 Mechanical size: 90*70*15mm

Swing joint interface:
