SOA Semiconductor Fiber Optical Amplifier
EDFA Customized Series

SOA Semiconductor Fiber Optical Amplifier

Product
● Low noise
● Low power consumption
● Output power up to 10dBm, gain 14dB
● 1x and 2x arrays
● Three working modes: APC, AGC and ACC
● Support customization

    Product Inquiry: +86 15610114544
    Product Inquiry Contact Us
    product details

    product description

    O-band SOA (Semiconductor Optical Amplifier) products offer advantages like good gain performance, excellent compatibility with O-band characteristics, and high integrability:
    • Good Gain Performance: High saturation power, typically up to 10dBm. Small-signal gain >10dB across the O-band (1260nm-1340nm) with gain ripple <1dB. Provides stable and effective amplification for O-band signals, ensuring strength and quality during transmission.
    • Excellent Compatibility with O-band: The O-band features zero-dispersion, minimizing signal dispersion caused by different wavelength velocities, enabling more stable and efficient transmission. O-band SOAs leverage this特性, maintaining good signal integrity over short to medium distances, reducing distortion. Particularly suitable for scenarios with high requirements on transmission rate and latency, like 5G fronthaul and data centers.
    • Transmission Distance Advantage: With O-band SOAs, O-band signals can achieve transmission distances up to 30km in single-mode fiber, meeting needs of metro access/aggregation networks, data center interconnects (DCI), and other short-to-medium reach applications, providing strong support for these communications.
    • Small Size & Easy Integration: WSEE laser's O-band SOA features a compact size conducive to reducing equipment size, facilitating use in space-limited devices/systems. Can also achieve dual-channel integration functionality for integration into high-density optical communication modules.
    • High Cost-Effectiveness: The O-band eliminates the need for additional dispersion compensation modules. Using O-band SOAs simplifies system architecture, reduces complexity and overall cost, making them attractive for operators and equipment manufacturers seeking high cost-effective solutions.

    Product Applications

    ● 100G communication system
    ● Fiber optic sensing

    Product Parameters

    Parameters

    Min

    Typ

    Max

    Unit

    Wavelength Coverage

    1290

    -

    1330

    		 nm

    Input Power Range

    -20

    -6

    +6

    dBm

    Output Power Range

    -2

    8

    		 10

    dBm

    Gain

    		 - 14

    -

    		 dB

    Noise Finger

    		 7.5

    8

    		 dB

    Working Temperature

    -5

    -

    +55

    °C

    Storage Temperature

    -40

    -

    85

    °C

    Relative Humidity (non-condensation)

    15

    -

    85

    %

    Product Size

    130*100*15

    mm

    Power Consumption

    10

    W

    Supply Voltage

    4.75

    5

    5.25

    V

    Communication Level

    LVTTL/RS232

    Communication Port Rate

    115200

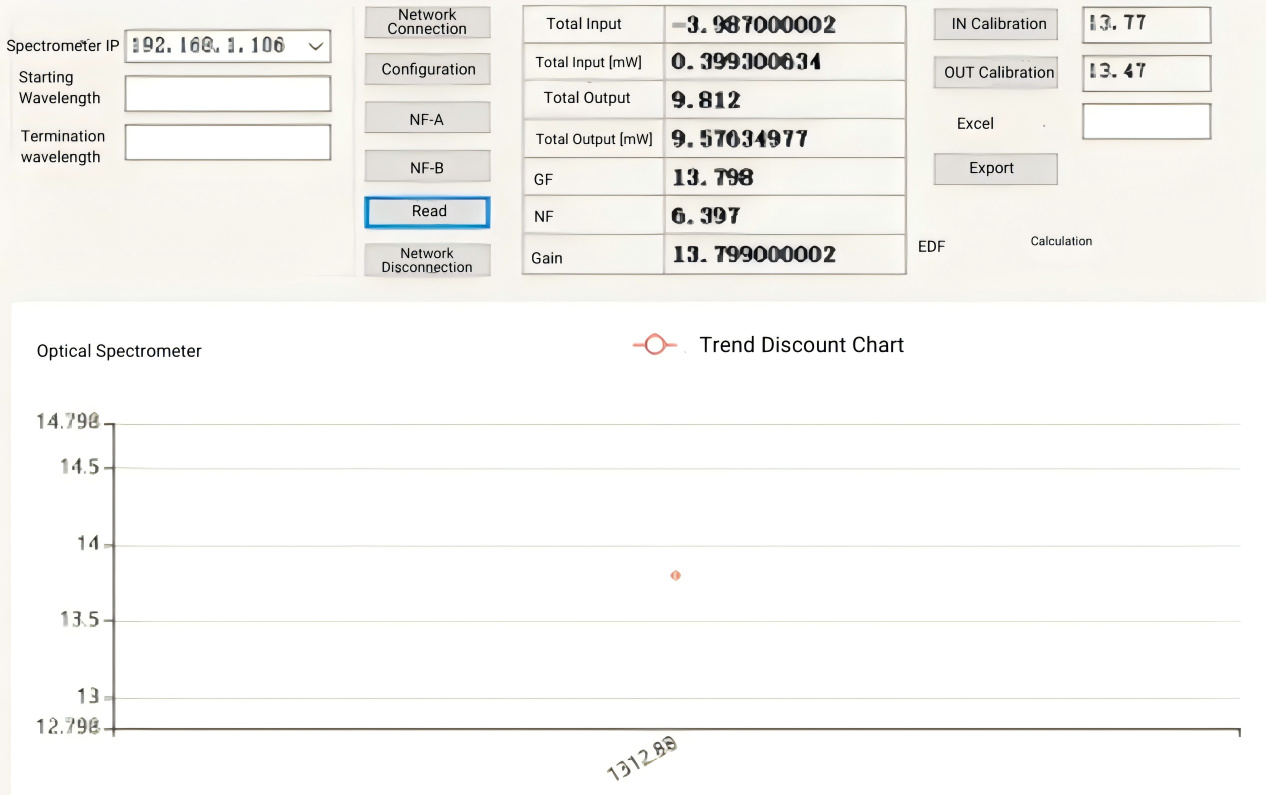

    Test Data Curve

    SOA

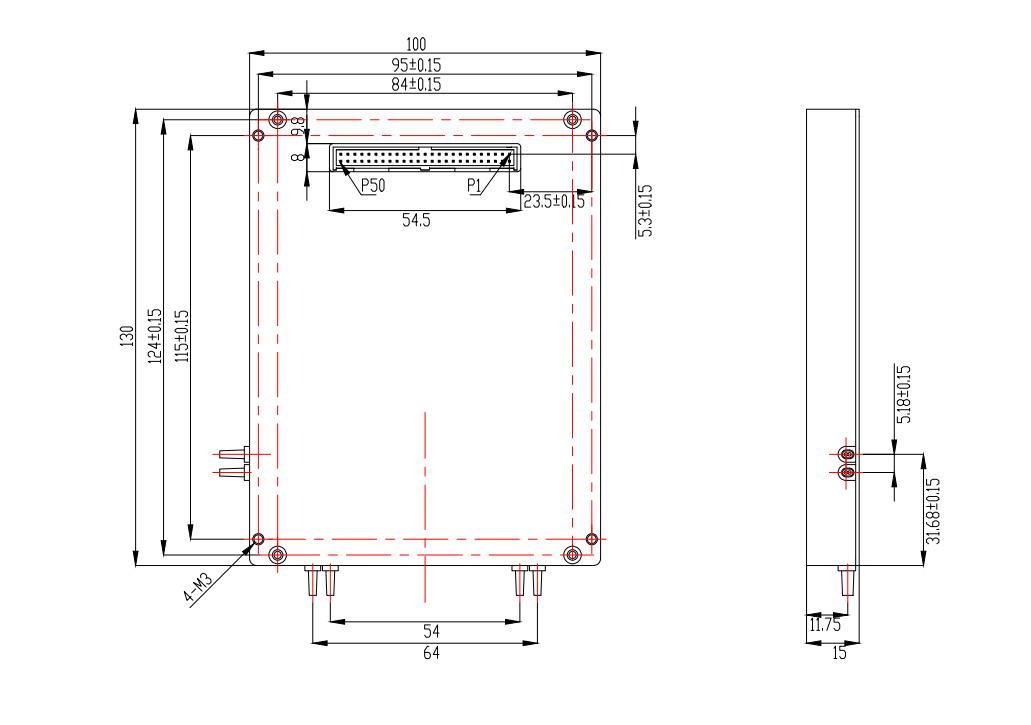

    Product Size

    product description02

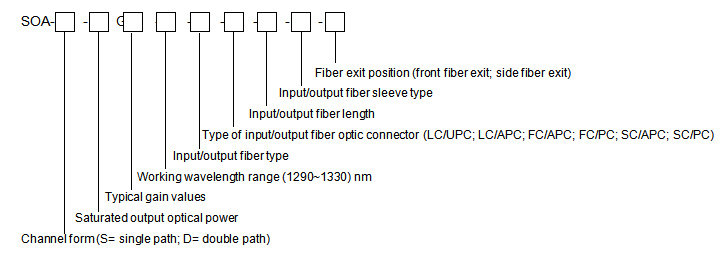

    Product Ordering Guide

    product description03
    • SOA-S/D-8 G14- (1290~1330) nm-0.9-LC/UPC-0.5-white pine sleeve-front/side fiber
      SOA: Semiconductor optical fiber amplifier
      S/D: S-single road, D-double road
      8: Typical output optical power 8dBm
      G14: Typical gain 14dB
      1290~1330nm: working wavelength range
      0.9: Input/output fiber type SMF-28e,900um
      LC/UPC: Type of fiber optic connector
      0.5: Input and output fiber length 0.5m
      White loose tube: fiber optic tail fiber tube type
      Forward/side fiber: Fiber output position of optical fiber jumper
